Mini L298N 2 Channel Stepper Driver Motor Module PWM L298 Dual Channel

Elektronik > Elektronik Lainnya > Mini L298N 2 Channel Stepper Driver Motor Module PWM L298 Dual Channel
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Mini L298N 2 Channel Stepper Driver Motor Module PWM L298 Dual Channel

Hi #RekanEasyWare ...
EasyWare Part#: EP000554

Fitur:
- Dual H-bridge motor drive, you can drive two DC motors or a four-wire two-phase stepper motor;
- Module supply voltage 2V-10V;
- Signal input voltage 1.8-7V;
- Single - channel operating current of 1.5A, the peak current up to 2.5A, low standby current (less than 0.1uA);
- Built-in anti-co-state conduction circuit, the input is vacant, the motor will not malfunction;
- Built-in thermal protection circuit with hysteresis (TSD), no need to worry about the motor stall;
- INx connected to the microcontroller IO or other signal source, MOTOR-A and MOTOR-B terminating motor;

Kelengkapan:
- 1x L298N Mini Stepper Motor Driver Module

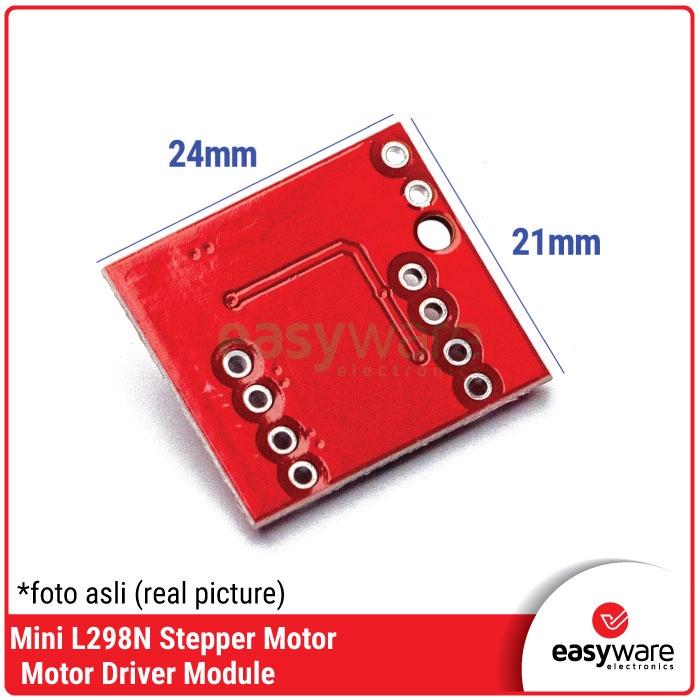

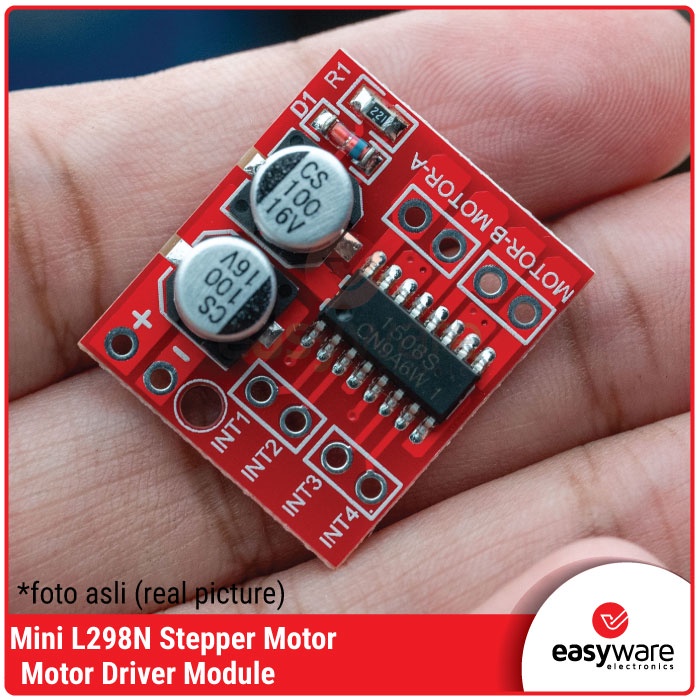

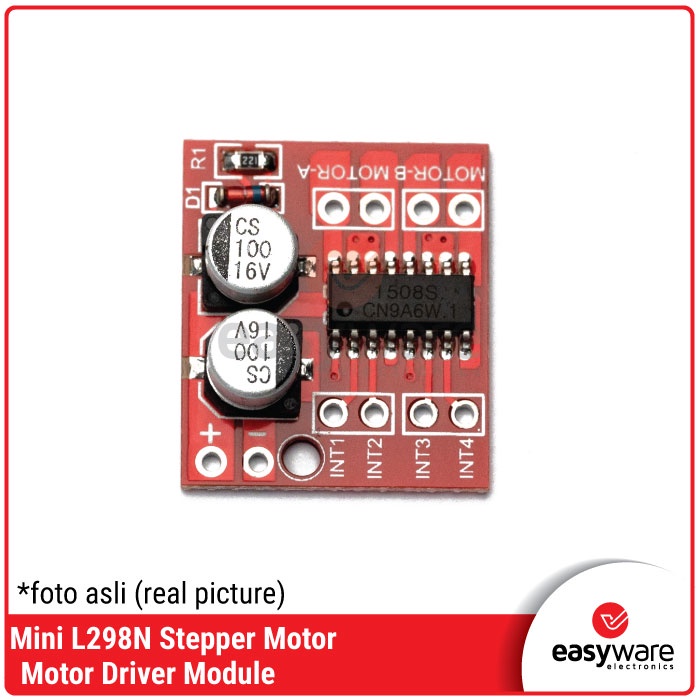

Gambar produk
