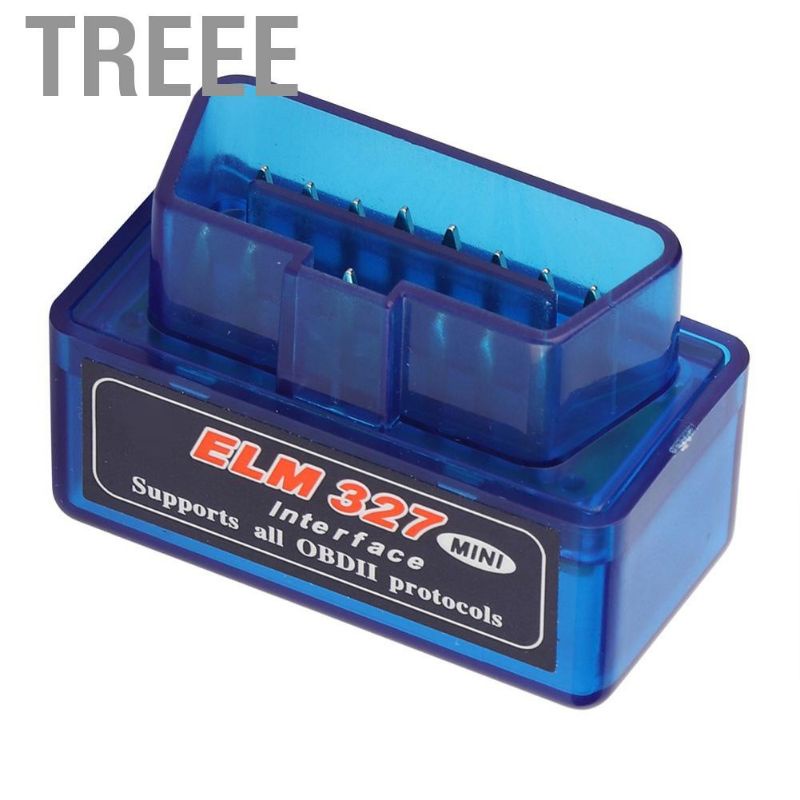

mini elm327 bluetooth obd2
Deskripsi singkat
Otomotif > Perkakas & Perlengkapan Kendaraan > Peralatan Uji, Diagnosa, & Servis > mini elm327 bluetooth obd2
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail mini elm327 bluetooth obd2
Specification:Condition: 100% Brand New
Material: ABS
Color: Blue
Package Weight: Approx. 24g/0.8oz
#Supported OBD-II Protocol:
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
for SAE J1939 CAN (29bit ID, 250*Kbaud)
-USER1 CAN (11*bit ID, 125*Kbaud)
-USER2 CAN (11*bit ID, 50*kbaud)
#Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure

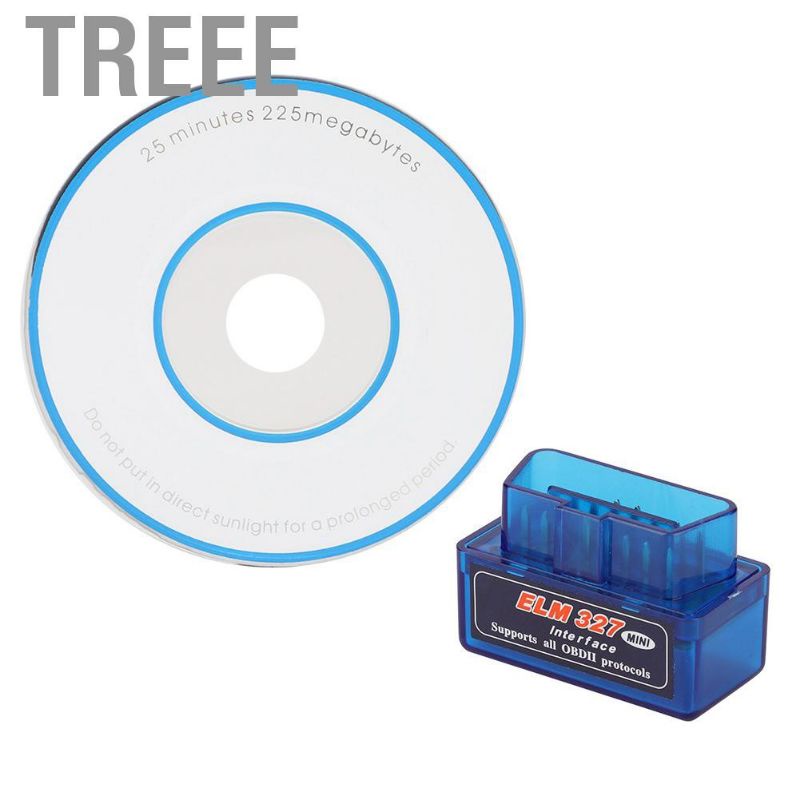

Package List:
1 * OBD
1 * CD
