Detail MINI ALARM DC VIBRATION MOTOR MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP001724

This is a small vibration motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone.

FITUR DAN SPESIFIKASI :
* High-quality mobile phone vibration motor, vibration effect is obvious
* Most amplification drive, can be directly controlled through the digital port
* The vibration intensity of the motor can be controlled by PWM
* This module can easily complete the conversion of electrical signals to mechanical vibration
* Rated voltage: 5.0VDC
* Operating voltage: 3.0 - 5.3VDC
* Rated speed: 9000 rpm minimum
* Rated current: up to 60 mA
* Starting current: up to 90 mA
* Starting voltage: DC3.7V
* Insulation resistance: 10Mohm
* Dimension: 21 * 30mm

KELENGKAPAN :
* 1pcs Mini Alarm DC Vibration Motor Module Arduino Compatible

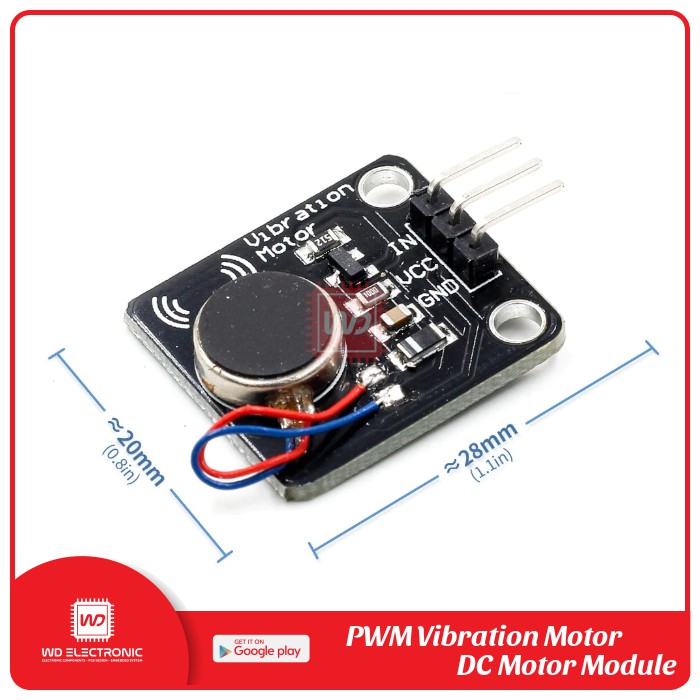

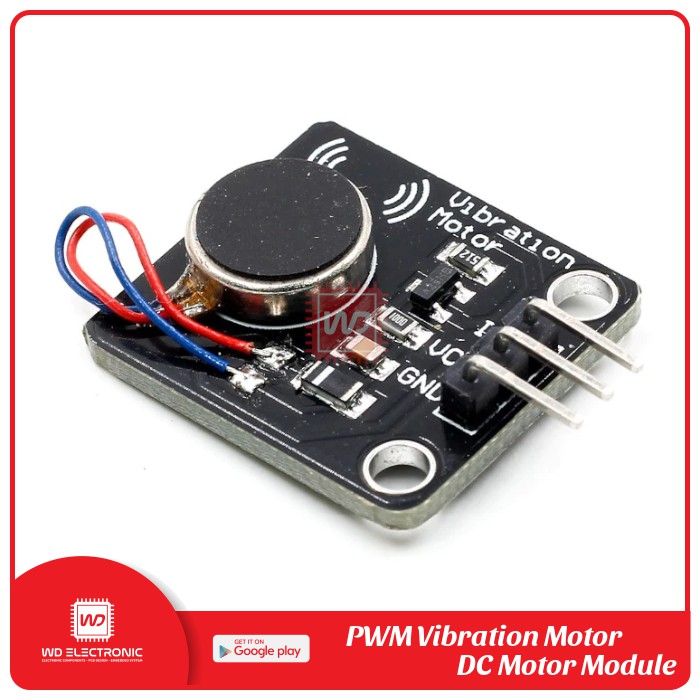

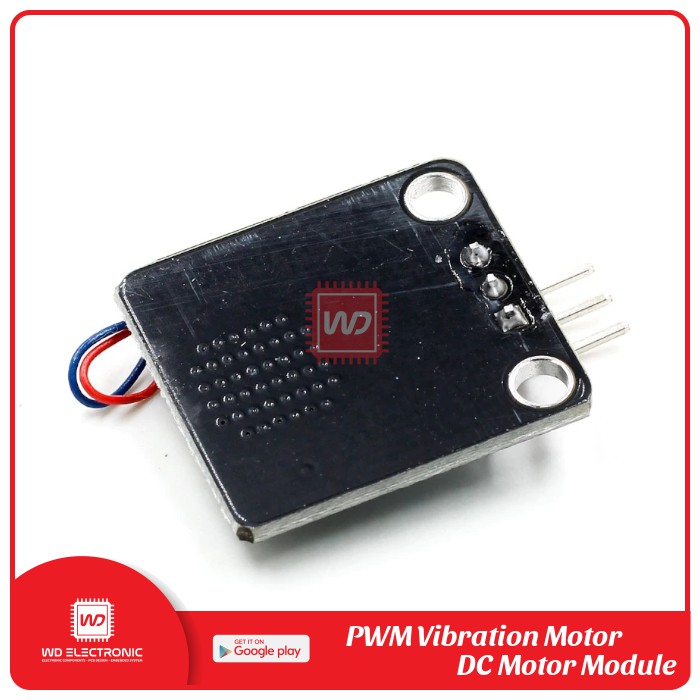

Gambar produk
