Mini ADS1115 4 Channel 16 bit I2C ADC Programmable Gain Amplifier

Detail Mini ADS1115 4 Channel 16 bit I2C ADC Programmable Gain Amplifier

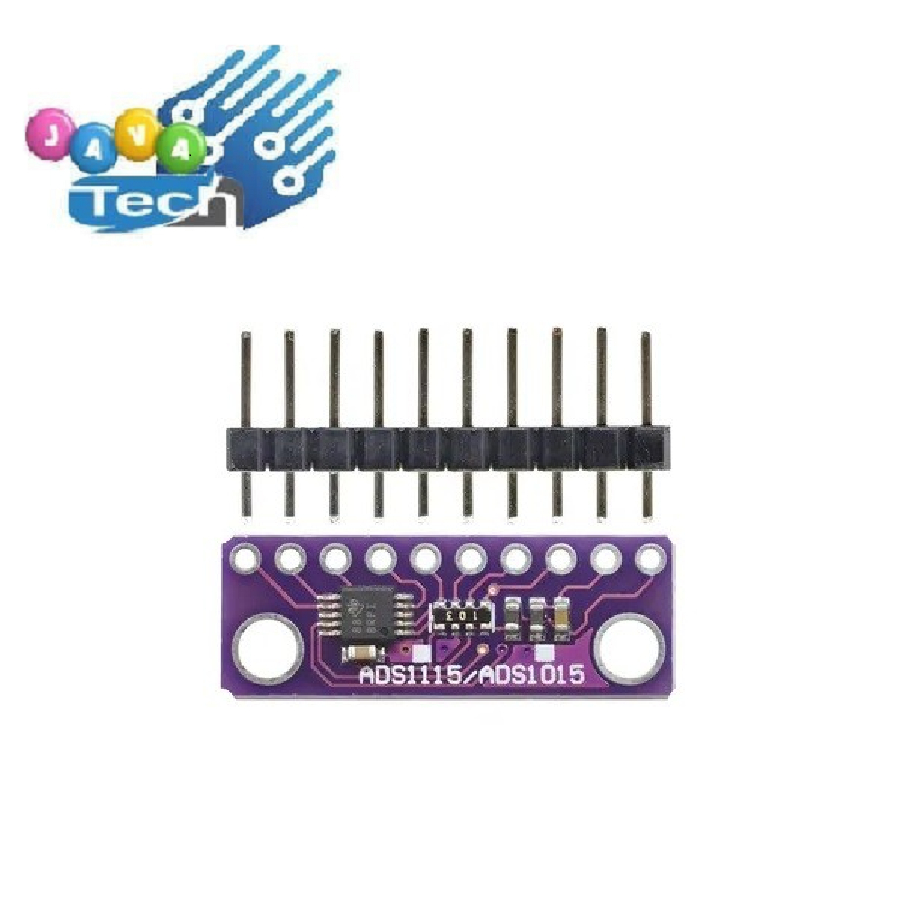

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and it's super easy to use. It is a great general purpose 12 bit converter.

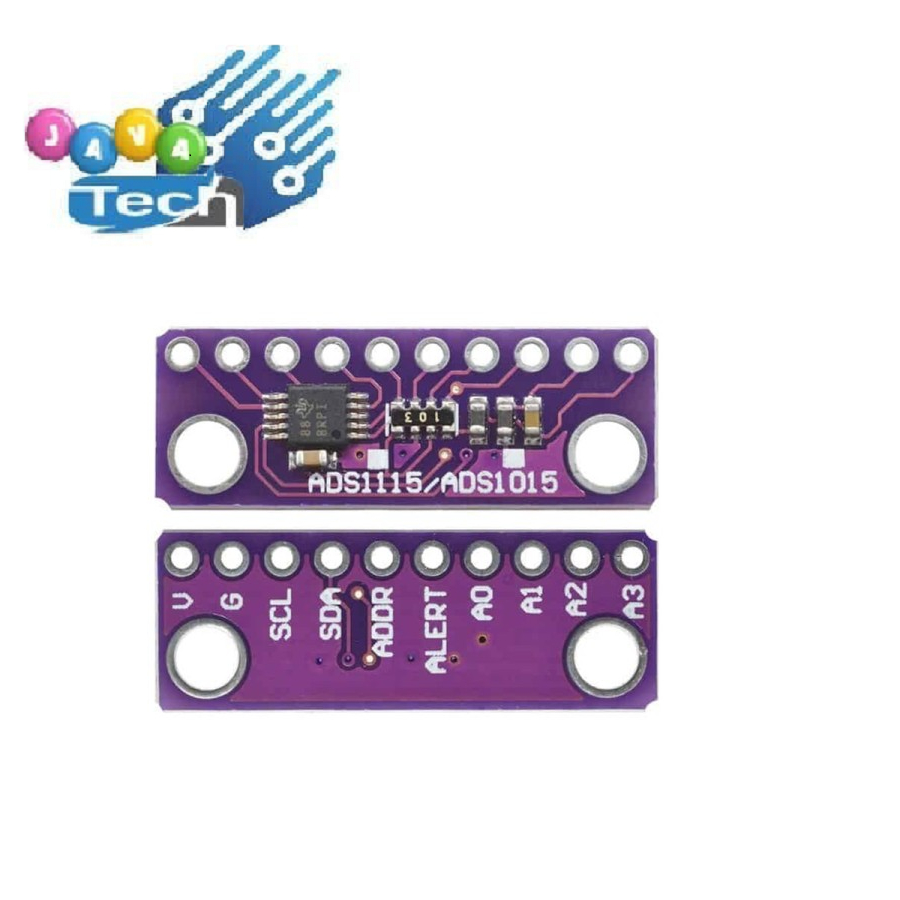

The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs.

Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard. Four mounting holes for easy attachment.

Specifications:

WIDE SUPPLY RANGE: 2.0V to 5.5V
LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE: 128SPS to 3.3kSPS
INTERNAL LOW-DRIFT VOLTAGE REFERENCE
INTERNAL OSCILLATOR
INTERNAL PGA
I2C INTERFACE: Pin-Selectable Addresses
FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS
PROGRAMMABLE COMPARATOR
This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
