Mini 360 DC-DC Buck Converter Step Down Module Replacement LM2596
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Power Supply > Mini 360 DC-DC Buck Converter Step Down Module Replacement LM2596
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Mini 360 DC-DC Buck Converter Step Down Module Replacement LM2596
FEATURE- Non-isolated step-down
- Synchronous rectification
- Size : approx. 17 x 11 x 3.8mm
- Input voltage : 4.75V-23V
- Output voltage : 1.0V-17V
- Current output : peak 3A, 1.8A long time
- Transfer efficiency : 96% ( highest)
- Swtiching frenquency : 340KHz
- Output ripple : 30mV(no-load)
- Load regulation : 0.5%
- Voltage regulation : 2.5%
- Operating temperature : -40~+85

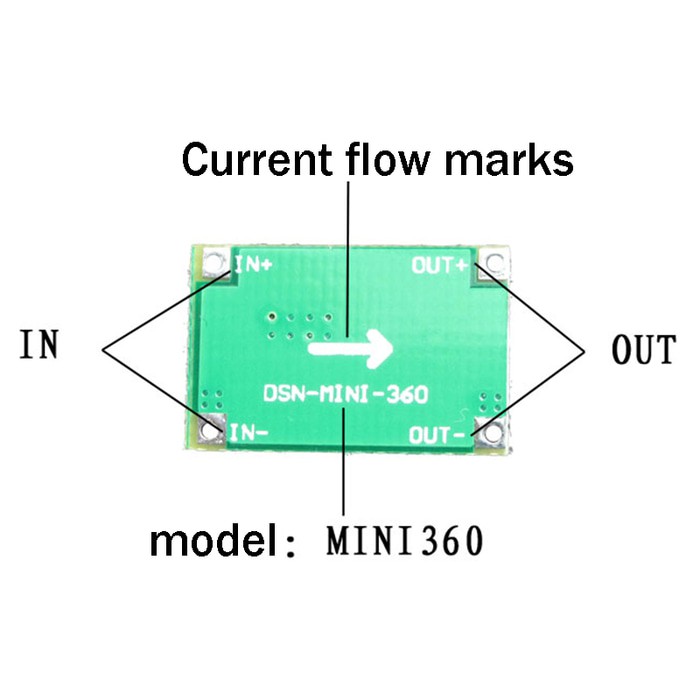

Gambar produk
