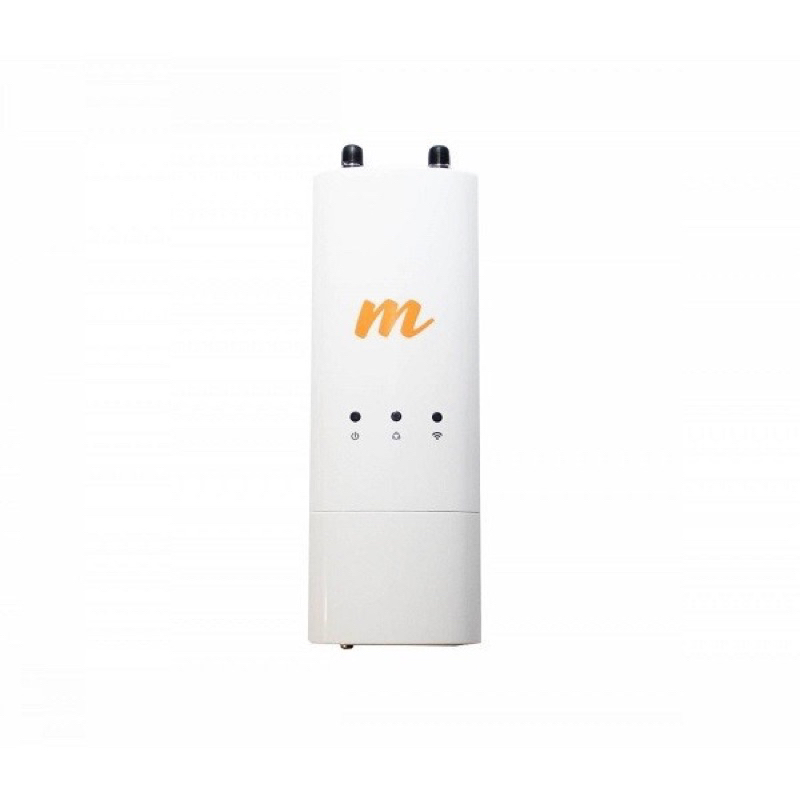

Mimosa C5c Outdoor Acces Point 4.9-6.4 GHz include adaptor poe

Detail Mimosa C5c Outdoor Acces Point 4.9-6.4 GHz include adaptor poe

tidak direkomendasikan memakai frequensi 5580 - 5720 ya (Itu freq BMKG, Soalnya freq itu utk system alarm bencana alam)
Kami informasikan untuk standart instalasi perangkat mimosa untuk groundingnya wajib digunakan . Karena bila garansi dan terdeteksi groundingnya tidak digunakan, maka tdk bisa diclaim garansinya
MIMOSA C5c merupakan solusi radio client yang fleksibel untuk jarak PTP dekat dan jauh. Dengan teknologi SRS dari MIMOSA, C5c sangat ideal untuk koneksi fixed wireless dan aplikasi backhaul point-to-point daerah pinggir kota.

Technical Specifications
Performance
Max Throughput:
PTMP: 500+ Mbps IP (866 Mbps PHY)
PTP: 700+ Mbps IP (866 Mbps PHY)
Wireless Protocols:
WiFi Interop
Mimosa SRS
Modes:
PTMP Client
PTP Backhaul
Radio
MIMO and Modulation:
2x2:2 MIMO OFDM up to 256-QAM
Bandwidth*:
20/40/80 MHz channels tunable to
5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels
for WiFi Interop
Frequency Range:
PTMP: 4900 6200 MHz
PTP: 4900 6400 MHz
Restricted by country of operation
new US/FCC 5600-5650 MHz support
Max Output Power:
27 dBm
Sensitivity (MCS0):
-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption:
12.9 W
System Power Method:
Passive PoE (24-56VDC)

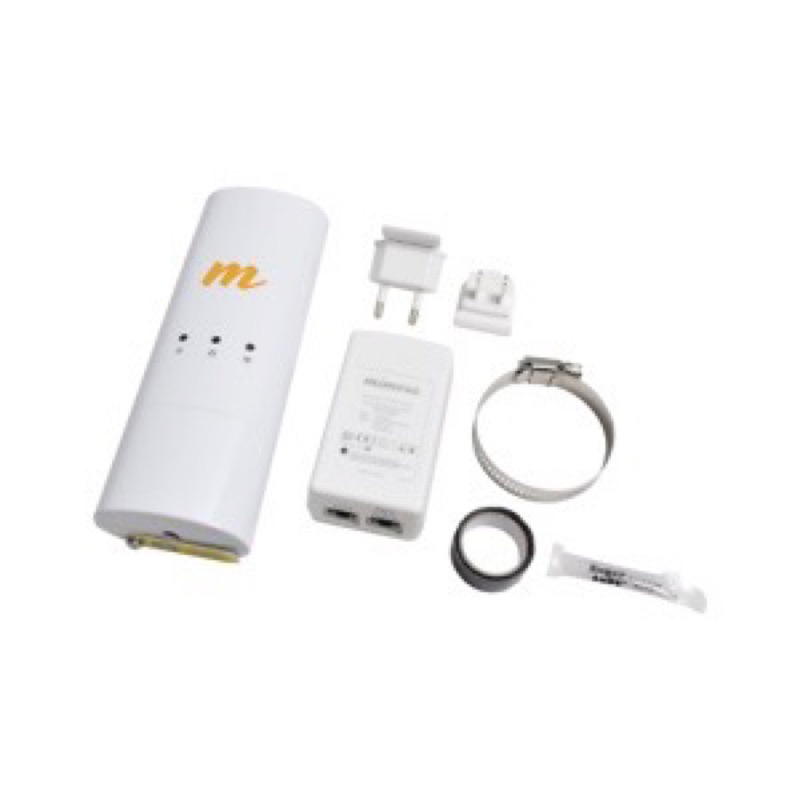

PoE Power Supply:
Passive PoE compliant, 48-56 V Power
over Ethernet supply (included)
Physical
Dimensions:
Depth: 44.0 mm (1.73)
Width: 65 mm (2.56)
Height: 188.4 mm (7.42)
Weight: 295 gr (10.4 ounces)
Mounting: Single pole strap
Connector Type: RP-SMA (x2)
Environmental
Operating Temperature:
-40C to +55C (-40F to 131F)
Operating Humidity:
5 to 100% condensing
Outdoor Ingress Protection Rating:
IP55
Operating Altitude:
4,420 m (14,501) maximum
Shock and Vibration:
ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet:
10/100/1000-BASE-T
Multi-User MIMO**:
CPE is MU-MIMO capable
Management Services:
Mimosa cloud monitoring
and management
SNMPv2 & Syslog legacy monitoring
HTTPS
HTML5 based web UI
Smart Spectrum Management:
Active scan monitors/logs ongoing RF
interference across channels with no
service impact; Dynamic
auto-optimization of channel and
bandwidth use
Security:
WPA2 PSK & Enterprise 802.1x; Radius
provisioning, COA, DM (from A5); 128-bit
AES with hardware acceleration
VLANs:
Per subscriber VLAN; Q-in-Q, triple
tagging; Management VLAN
QoS:
Supports 4 pre-configured QoS levels
Regulatory and Compliance
Approvals:
FCC Part 15.407 and Part 90Y, IC
RSS210, CE, ETSI 301 893/302 502
RoHS Compliance: Yes
Safety: UL/EC/EN/ 60950-1 + CSA-22.2

Gambar produk
