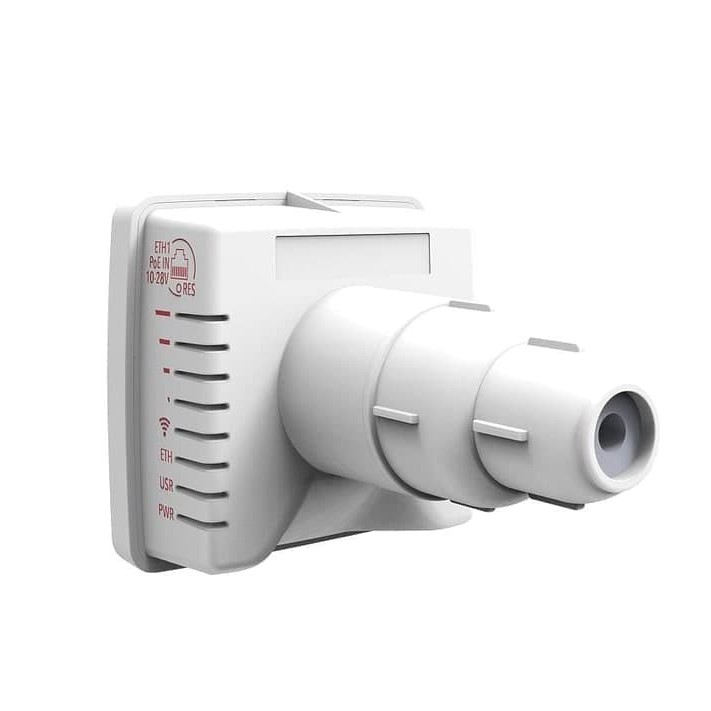

Mikrotik Wireless Systems RBLDF-5nD LDF 5

Detail Mikrotik Wireless Systems RBLDF-5nD LDF 5

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

LDF 5 Dual chain 5GHz system for long distance links with satellite offset dish antennas

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi.

Specifications
Details
Product code RBLDF-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 84x84x115mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 9
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1

Gambar produk
