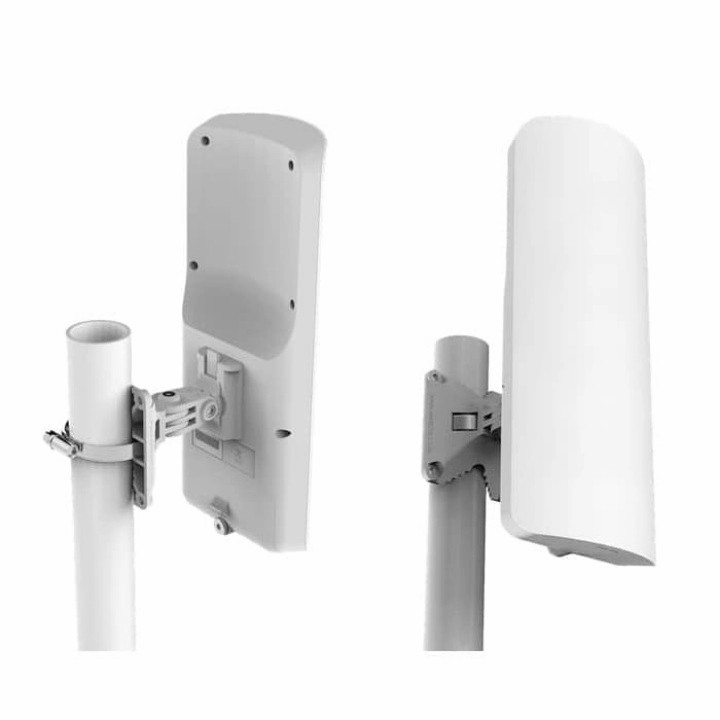

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
Specifications Details Product code RB911G-2HPnD-12S Architecture MIPSBE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 140 x 348 x 82 mm RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 128 MB Storage type NAND MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 8-30 V Max power consumption 11 W FAN count Passive PoE in Passive PoE PoE in input Voltage 10-28 V Wireless specifications Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 12 Wireless 2.4 GHz chip model AR9342 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100/1000 Ethernet ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes
