DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.
Specifications Details Product code RBDisc-5nD Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz Dimensions ⌀ 265mm, height: 80mm RouterOS license 3 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 6 W FAN count Passive PoE in Passive PoE PoE in input Voltage 10-30 V Wireless specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n Antenna gain dBi for 5 GHz 21 Wireless 5 GHz chip model AR9344 Wireless 5 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1

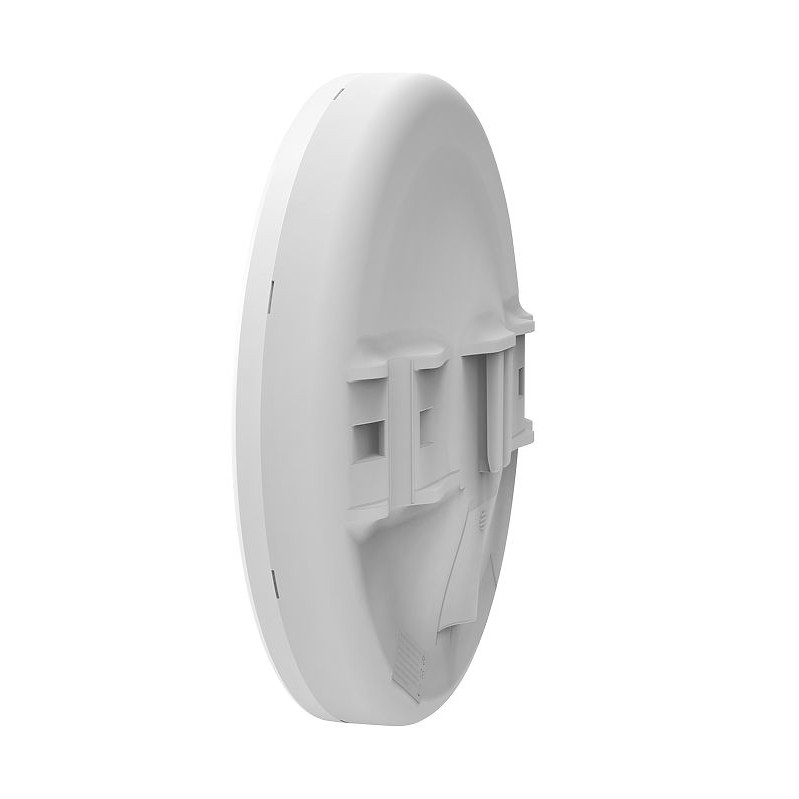

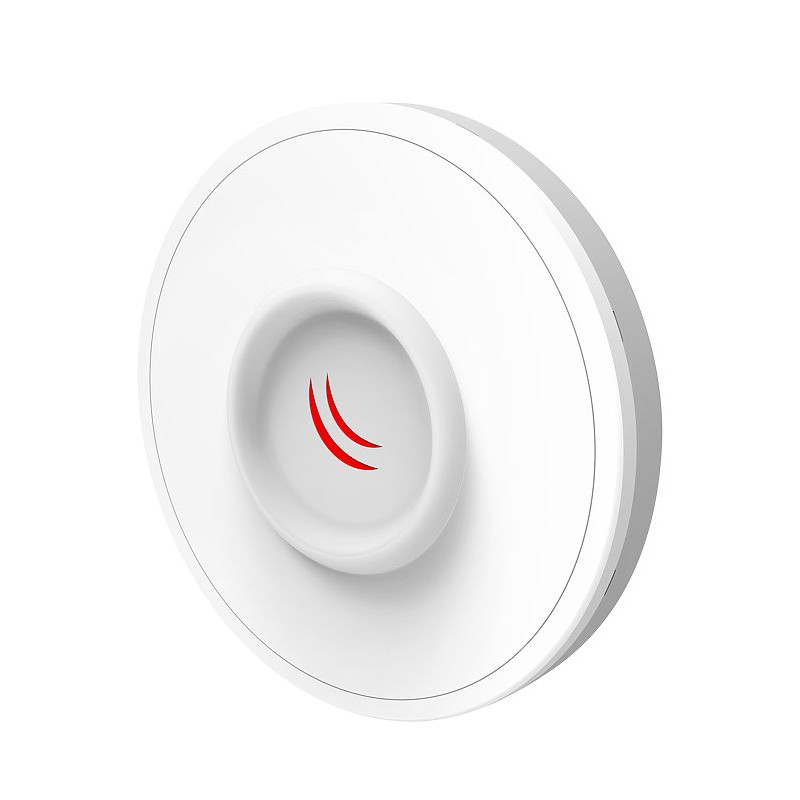

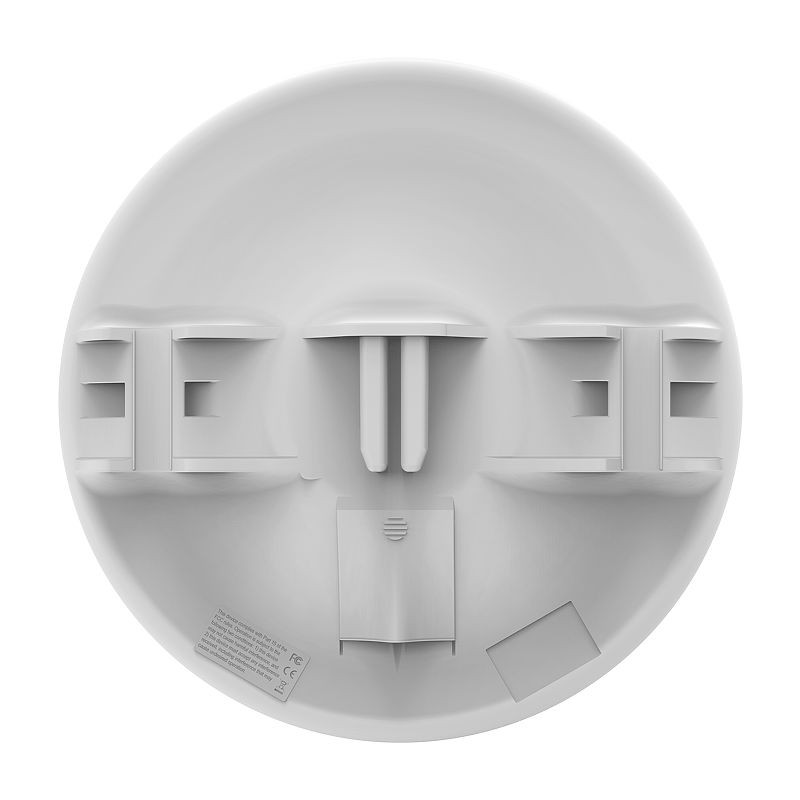

Gambar produk
Mikrotik Wireless Systems RBDisc-5nD DISC Lite5Mikrotik Wireless Systems RBDisc-5nD DISC Lite5Mikrotik Wireless Systems RBDisc-5nD DISC Lite5
