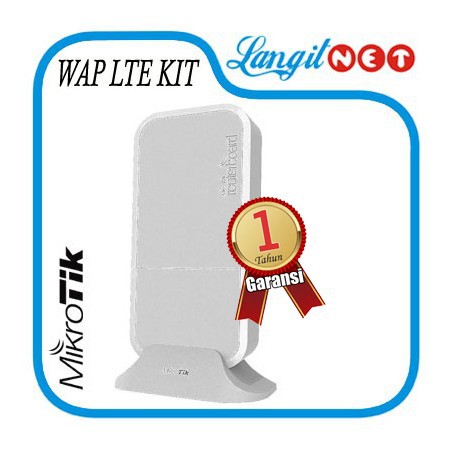

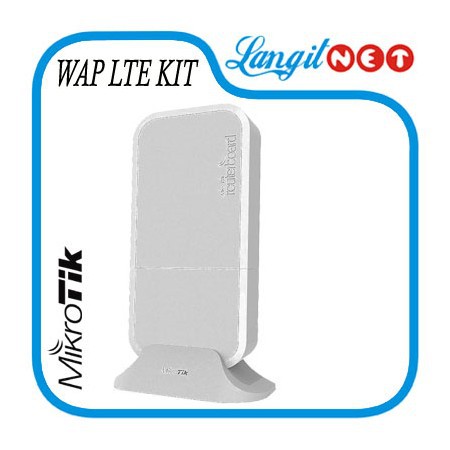

MIKROTIK WAP LTE KIT

Detail MIKROTIK WAP LTE KIT

VIDEO PRODUK :
youtube.com/watch?v=rmqYP4RUzL4

Product code RBwAPR-2nD&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 185 x 85 x 30 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C
Powering
Details
PoE in Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 8 W
Mobile
Details
2G Category Class12
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
Wireless
Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes

Gambar produk
