MikroTik SXT LTE kit RBSXTR&R11e-LTE

Detail MikroTik SXT LTE kit RBSXTR&R11e-LTE

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

MikroTik SXT LTE kit is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t. The SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G (international model only) and 3G, as well as much wider band range. The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

RBSXTR&R11e-4G includes LTE modem that supports International bands 3, 7, 20, 31, 41n, 42 and 43. NOT FOR US CARRIERS


Specifications

• Product Code: RBSXTR&R11e-4G
• CPU: QCA9531 650 MHz
• Size of RAM 64 MB
• Storage 16 MB Flash
• 10/100 Ethernet ports 2
• LTE antenna gain 10.5 dBi
• Antenna beam width 60°
• LTE category 4 (150Mbps Downlink, 50Mbps Uplink)
• SIM slot 2 (Micro SIM)
• PoE in Yes, on Ether1
• PoE out Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA
max total out (A): 600 mA
• Supported input voltage 18 - 57 V (Passive PoE, 802.3af/at on Ether2)
• Dimensions 140 x 140 x 103 mm
• Operating temperature -40°C .. +60°C tested
• License level 3
• Operating System RouterOS
• Max Power consumption 6 W
• LTE (FDD) bands 3/7/20/31 (1800/2600/800/450)
• LTE (TDD) bands 41n/42/43 (2500/3500/3700)

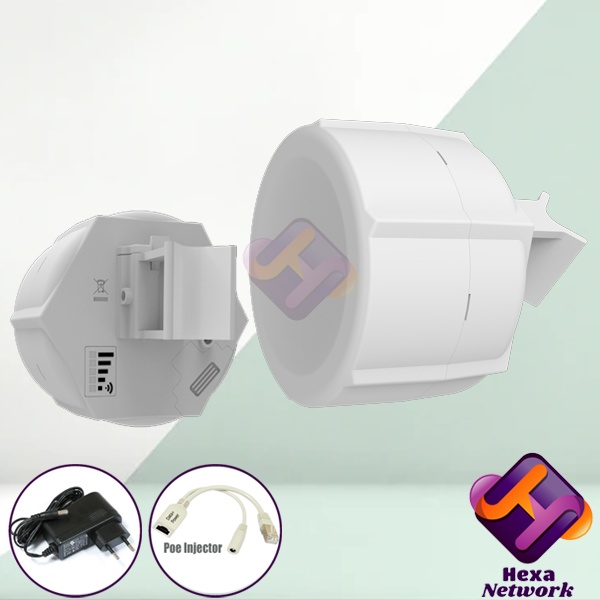

Gambar produk
