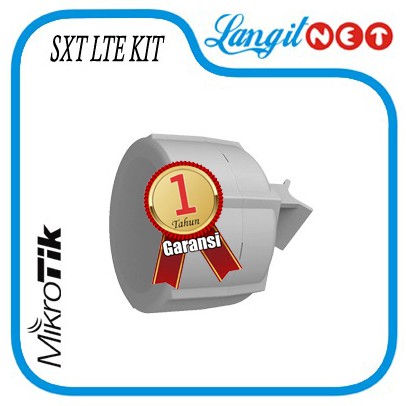

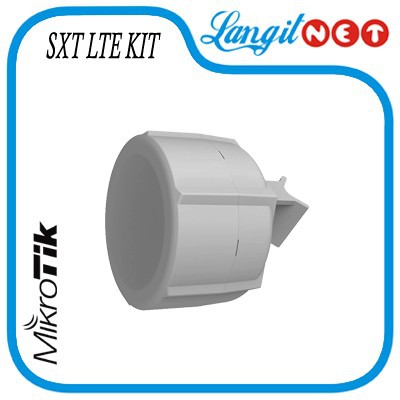

MIKROTIK SXT LTE KIT

Detail MIKROTIK SXT LTE KIT

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Product code RBSXTR&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 140 x 140 x 103 mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C
Powering
Details
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 12-57 V
Number of DC inputs 1 (PoE-IN)
Max out per port output (input > 30 V) 400 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 22 W
Max power consumption without attachments 5 W
Mobile
Details
2G Category Class12
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
Ethernet
Details
10/100 Ethernet ports 2
Peripherals
Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Other
Details
Mode button Yes
