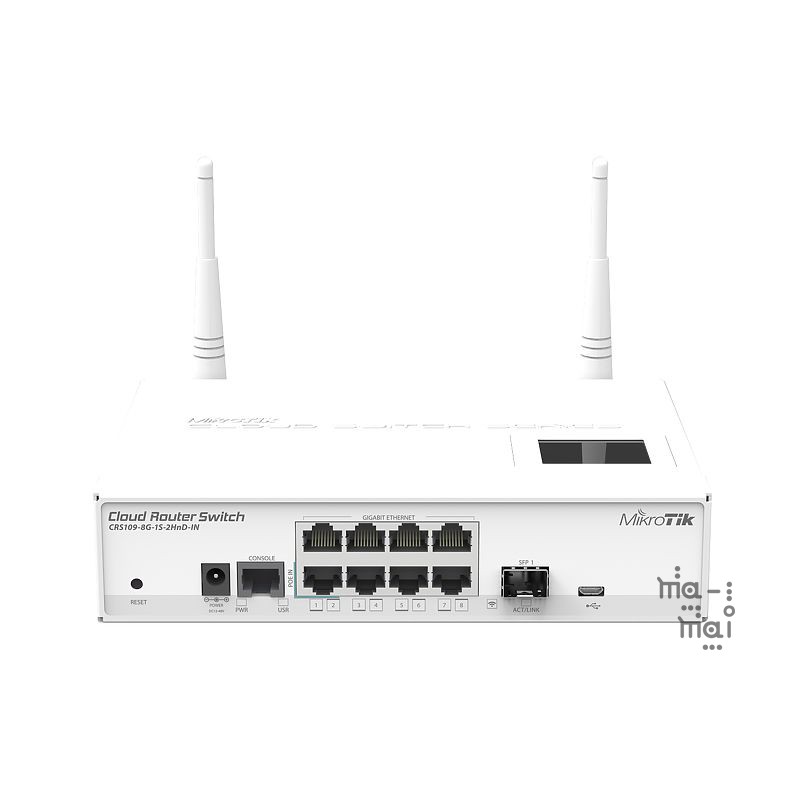

Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Specifications Details Product code CRS109-8G-1S-2HnD-IN Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 200x145x45mm License level 5 Operating System RouterOS Size of RAM 128 MB Storage size 128 MB Storage type NAND Tested ambient temperature -40°C to 65°C Suggested price $149.00 Powering Details PoE in Passive PoE 802.3af support yes PoE in input Voltage 10-57 V Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 10-57 V Max power consumption 13 W Wireless Details Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 4 Wireless 2.4 GHz chip model AR9344 Ethernet Details 10/100/1000 Ethernet ports 8 Fiber Details SFP DDMI yes SFP ports 1 Peripherals Details Serial port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type microUSB type AB Max USB current (A) 1.5 Other Details PCB temperature monitor Yes Voltage Monitor Yes Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity
