CRS354-48P-4S+2Q+RM The 48 port champion you’ve been waiting for - now with PoE-out!

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specifications
Details
Product code CRS354-48P-4S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 443 x 382 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Powering
Details
Number of AC inputs 1
AC input range 100-240
Max power consumption 800 W
Max power consumption without attachments 85 W
FAN count 4
PoE-out
Details
PoE-out ports Ether1-Ether48
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 570 mA
Total output current 27A at 26V OR 13.2A at 53V
Total output power 700W
Ethernet
Details
10/100 Ethernet ports 1
10/100/1000 Ethernet ports 48
Fiber
Details
SFP+ ports 4
Number of 40G QSFP+ ports 2
Peripherals
Details
Serial console port RJ45
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

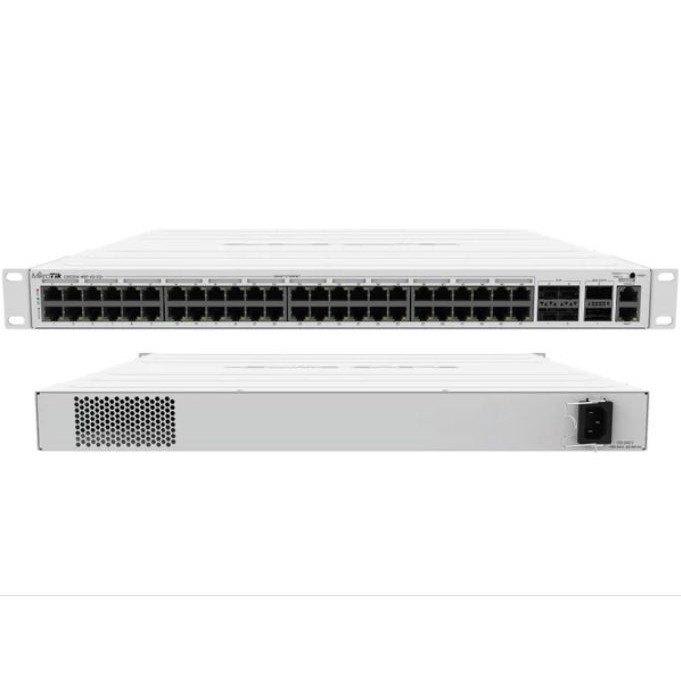

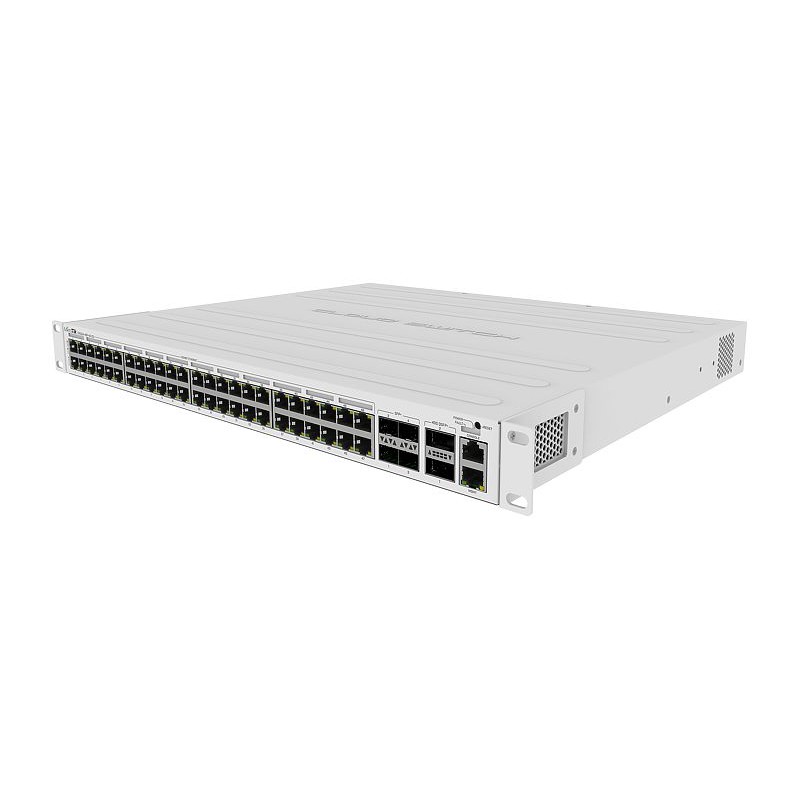

Gambar produk
