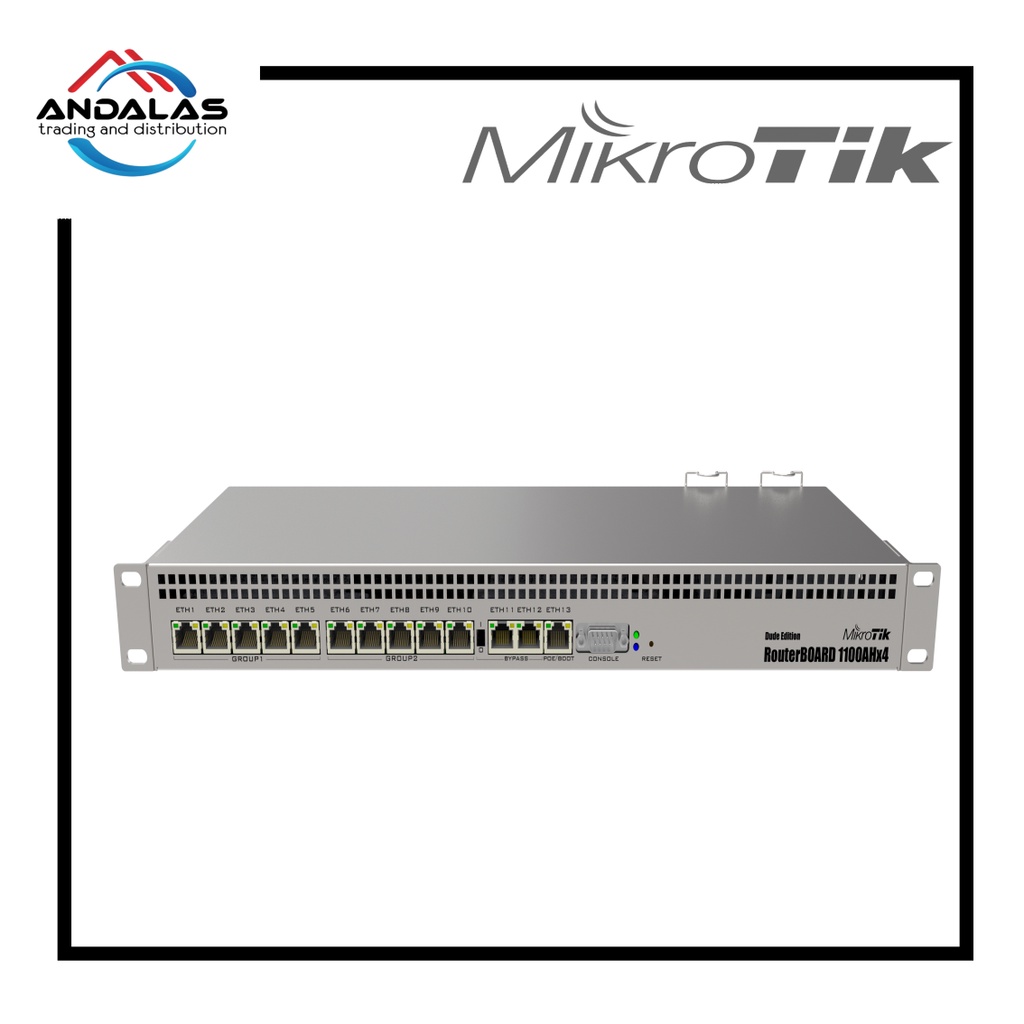

MIKROTIK ROUTER RUTER WIFI ROUTERBOARD RB 1100AHx4 DUDE EDITION

Detail MIKROTIK ROUTER RUTER WIFI ROUTERBOARD RB 1100AHx4 DUDE EDITION

Specifications
Details

Product code
RB1100Dx4
Architecture
ARM 32bit
CPU
AL21400
CPU core count
4
CPU nominal frequency
1.4 GHz
Switch chip model
RTL8367
Dimensions
443 x 148 x 44 mm
RouterOS license
6
Operating System
RouterOS
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes


Powering
Details

Number of AC inputs
2
Number of DC inputs
2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage
-48, 20-57 V
Max power consumption
33 W
Max power consumption without attachments
25 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
20-57 V

Ethernet
Details

10/100/1000 Ethernet ports
13

Peripherals
Details

Extended storage
60GB M.2 SSD included
Memory card type
microSD
Memory Cards
1
SATA ports
2x SATA3
Serial console port
RS232
Number of M.2 slots
2

Other
Details

Current Monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Beeper
Yes

Certification & Approvals
Details

Certification
CE, EAC, ROHS
IP
IP20

Gambar produk
