Mikrotik RBSXTR dan R11e-LTE|Pake SXT R plus R11e LTE MiniPCI

Detail Mikrotik RBSXTR dan R11e-LTE|Pake SXT R plus R11e LTE MiniPCI

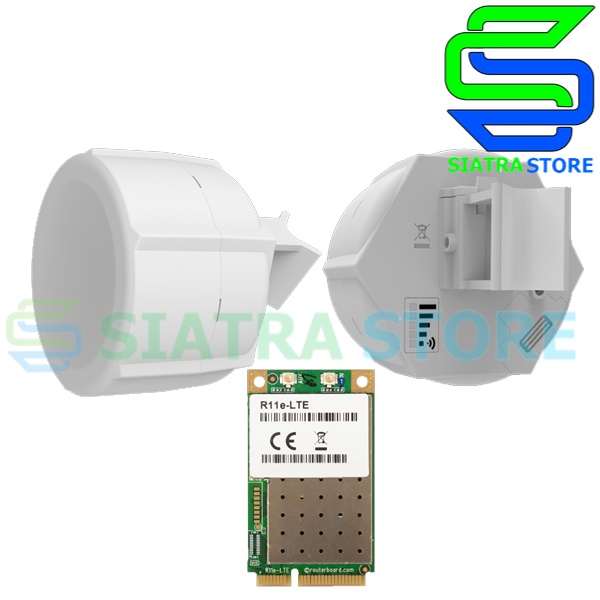

SXT R + R11e-LTE
10.5dBi 60 degree LTE antenna with 2x Ethernet ports with R11e-LTE miniPCI Modem

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

Specifications Details
Product code RBSXTR
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering Details
Number of DC inputs 1 (PoE-IN)
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
PoE-out Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA
Ethernet Details
10/100 Ethernet ports 2
Peripherals Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1
Other Details
Mode button Yes
Certification & Approvals Details
Certification CE, EAC, ROHS

Details
Product code R11e-LTE
Tested ambient temperature -30°C .. +70°C
Suggested price $85.00
Powering Details
Max power consumption 3 W
Mobile Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
