Mikrotik RBLHGG-5acD-XL

Detail Mikrotik RBLHGG-5acD-XL

Produk Mikrotik variant terbaru yang menggabungkan Antenna Grid Outdoor gain besar dengan RouterBoard yang memiliki banyak fitur. Mengutamakan gain antenna besar yang bisa digunakan di link wireless lebih jauh dari produk lain, siap digunakan di jaringan wireless backbone Anda.

Menggunakan Standart Wireless 802.11a/n/ac

Antenna Specification :
Operating frequency : 5150 - 5875 MHz
Antenna gain : 27 +/- 0.5 dBi
Antenna beam width : 7
Cross polar : 15 dBi
Port to port isolation : 20 dB
Front to back ratio : 25 dB
Return loss : 10 dB
VSWR : 1.925:1

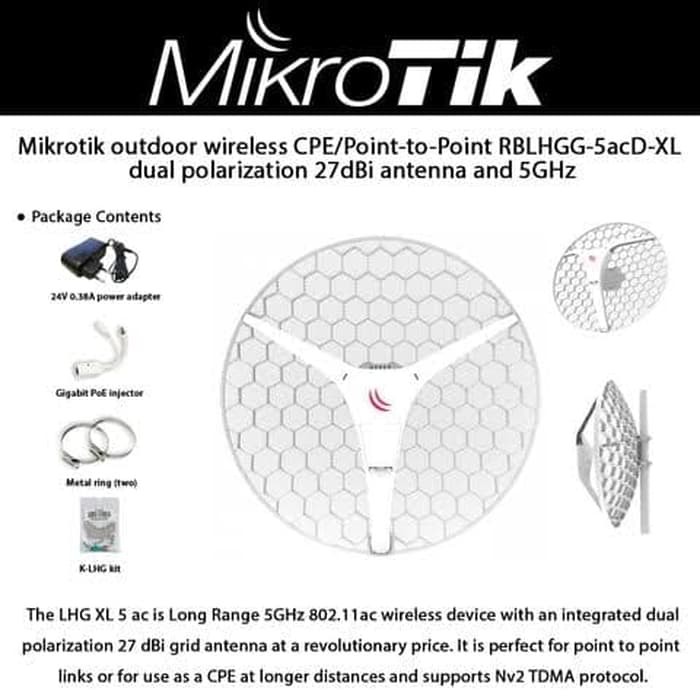

Detail Barang:

Routerboard RBLHGG-5acD-XL dengan outdoor Grid Antenna 5Ghz 27dbi
1 port ethernet (1 untuk PoE)
Power Adaptor 24 V
Power over Ethernet Spliter
2 pcs metal ring
Screw Kit


Spesifikasi RBLHGG-5acD-XL
Product Code RBLHGG-5acD-XL
Architecture ARM
CPU IPQ-4018 716 MHz - 4 Core
Current Monitor No
Main Storage/NAND 16MB
RAM 256MB
SFP Ports 0
LAN Ports 1
Gigabit Yes
Switch Chip No
MiniPCI 0
Integrated Wireless 1
Wireless Standarts 802.11 a/n/ac
Wireless Tx Power 25dbm
Integrated Antenna Yes
Antenna Gain 27dbi
MiniPCIe 0
SIM Card Slots No
USB No
Memory Cards No
Power Jack No
802.3af Support No
POE Input 11-30V
POE Output No
Serial Port No
Voltage Monitor No
Temperature Sensor No
Dimentions 550 x 550 x 245 mm
Operating System RouterOS
Temperature Range -40C .. +70C
RouterOS License Level3

Gambar produk
