Mikrotik RB951Ui-2HnD Router Wireless

Detail Mikrotik RB951Ui-2HnD Router Wireless

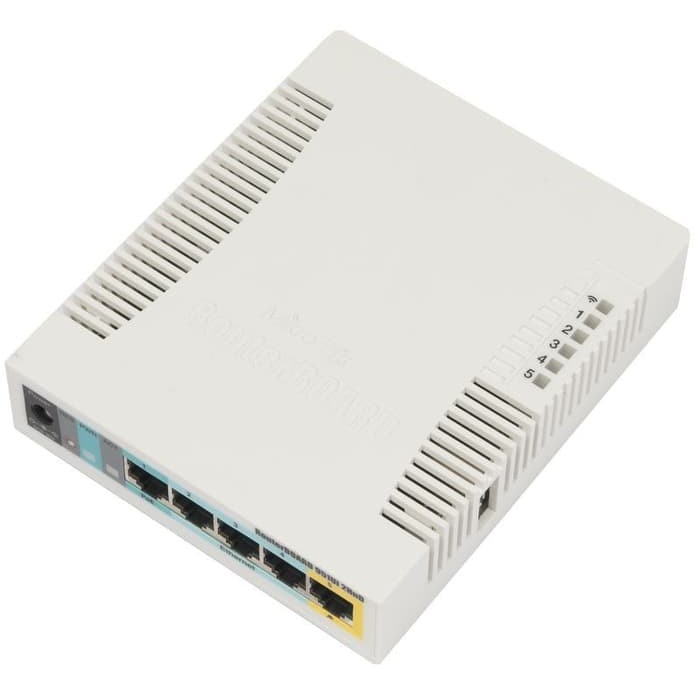

Overview Of Mikrotik Router RB951Ui-2HnD - White
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied
to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Product specifications
Details
Product code RB951Ui-2HnD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 0
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9344-DC3A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 1
802.3af support No
Supported input voltage 7 V - 31 V
PoE in Yes
PoE out Yes
Voltage Monitor No
CPU temperature monitor No
PCB temperature monitor No
Dimensions 113x138x29mm
Operating System RouterOS
Operating temperature range -20C +50C
License level 4
Antenna gain DBI 2.5
Current Monitor No
CPU AR9344-DC3A
Max Power consumption Up to 7W
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None

Wireless specifications
2.4 GHz
TX RX
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
wireless parameters may be limited in software, depending on your local regulatory limitations
