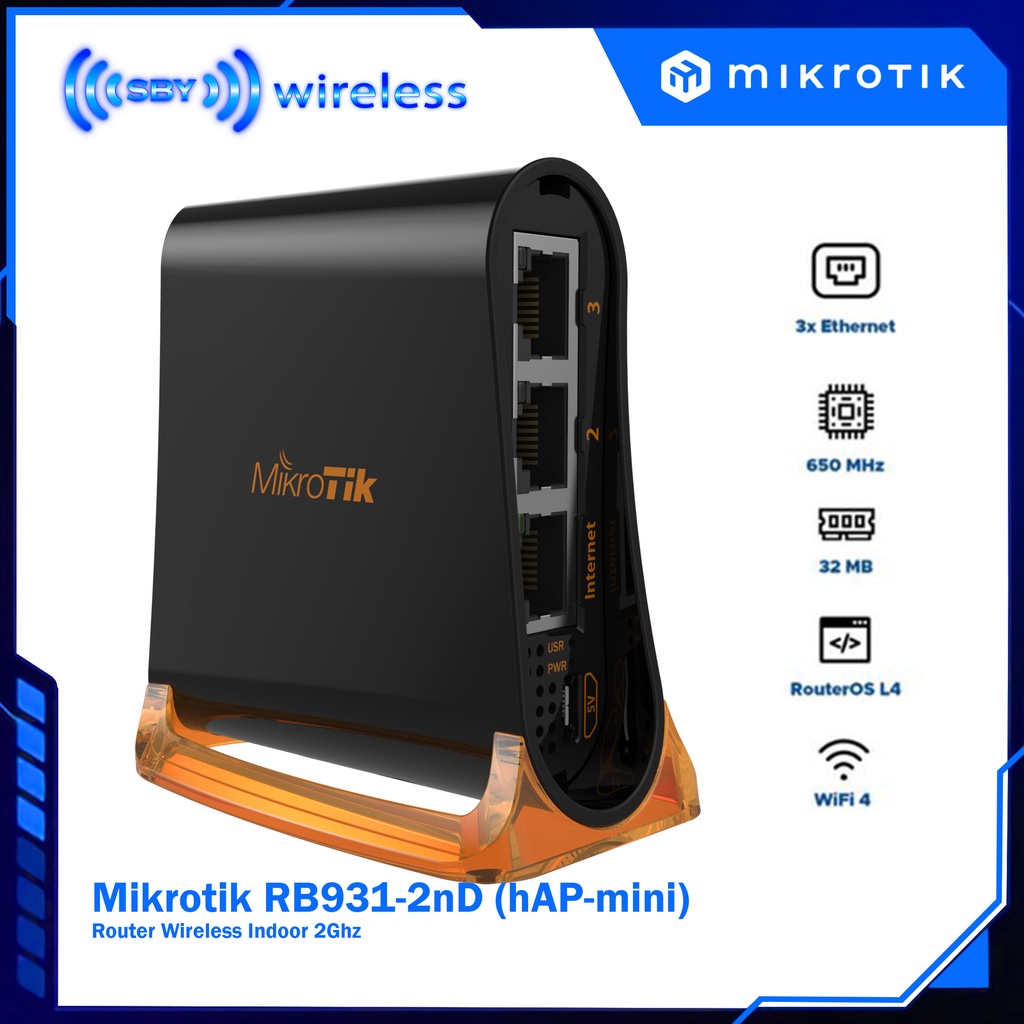

Mikrotik RB931-2nD (hAP-mini) Router Wireless Indoor 2Ghz

Detail Mikrotik RB931-2nD (hAP-mini) Router Wireless Indoor 2Ghz

Mikrotik Router Wireless RB931-2nD (hAP-Mini)

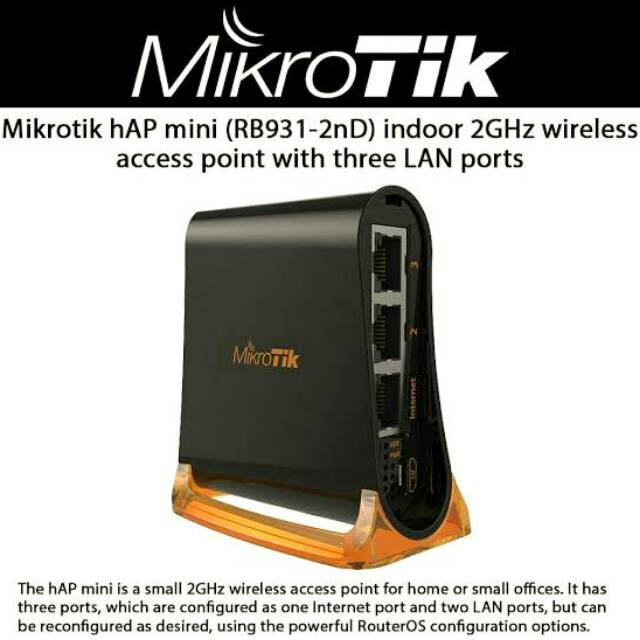

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.

The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point - it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.

Details
Product code RB931-2nD
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48 x 78 x 81mm
License level 4
Operating System RouterOS
Size of RAM 32 MB
Storage size 16 MB
Storage type FLASH

Powering
Details
Max Power consumption 3.5W
Number of DC inputs 1 (MicroUSB)
MicroUSB input Voltage 5V

Wireless
Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533

Ethernet
Details
10/100 Ethernet ports 3
Wireless specifications
2.4 GHz
Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 71
Ethernet test results
RB931-2nD QCA9533 100M three port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 24.4 296.3 70.5 288.8 395.0 202.2
Bridging 25 bridge filter rules 24.4 296.3 70.5 288.8 85.8 43.9
Routing none (fast path) 24.4 296.3 70.5 288.8 386.6 197.9
Routing 25 simple queues 24.4 296.3 64.9 265.8 151.6 77.6
Routing 25 ip filter rules 24.4 296.3 62.3 255.2 61.4 31.4
