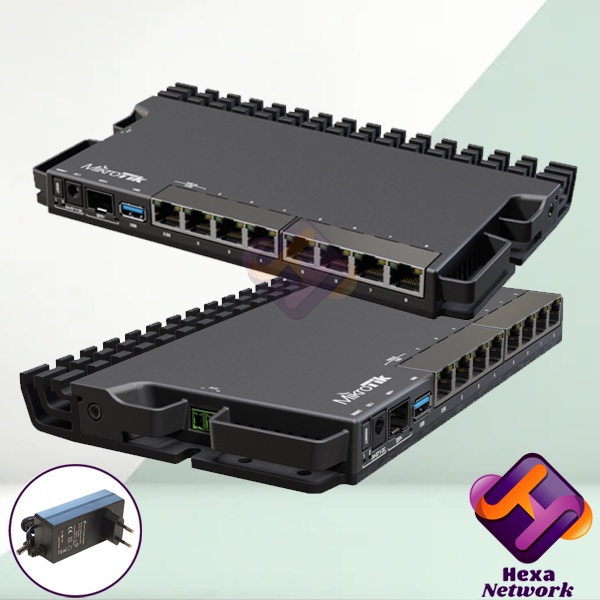

MikroTik RB5009UG+S+IN RB 5009 UG+ S+ IN

Detail MikroTik RB5009UG+S+IN RB 5009 UG+ S+ IN

MIkroTik RB5009UG+S+IN

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity

Specifications Details :
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
RouterOS license 5
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $219.00
Powering Details :
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 20 W
Max power consumption without attachments 14 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Ethernet Details :
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1
Fiber Details :
SFP+ ports 1
Peripherals Details :
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
