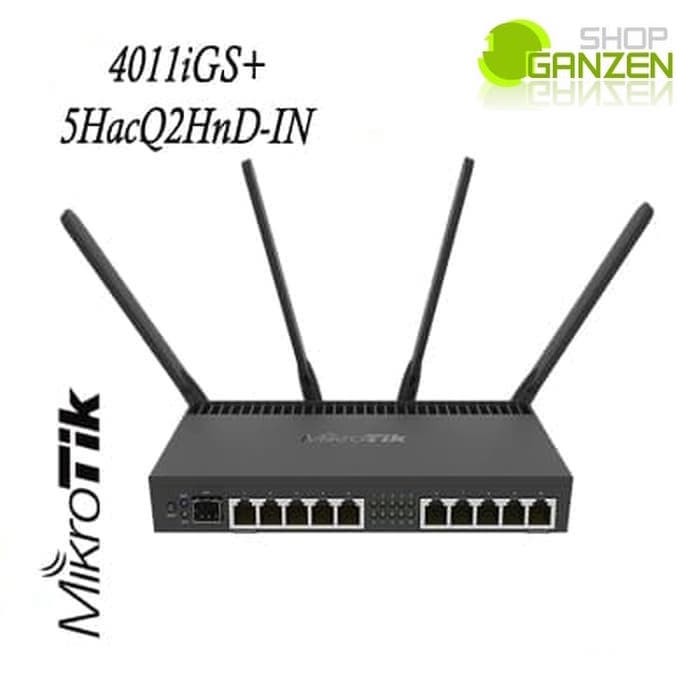

Mikrotik RB4011iGS+5HacQ2HnD-IN

Detail Mikrotik RB4011iGS+5HacQ2HnD-IN

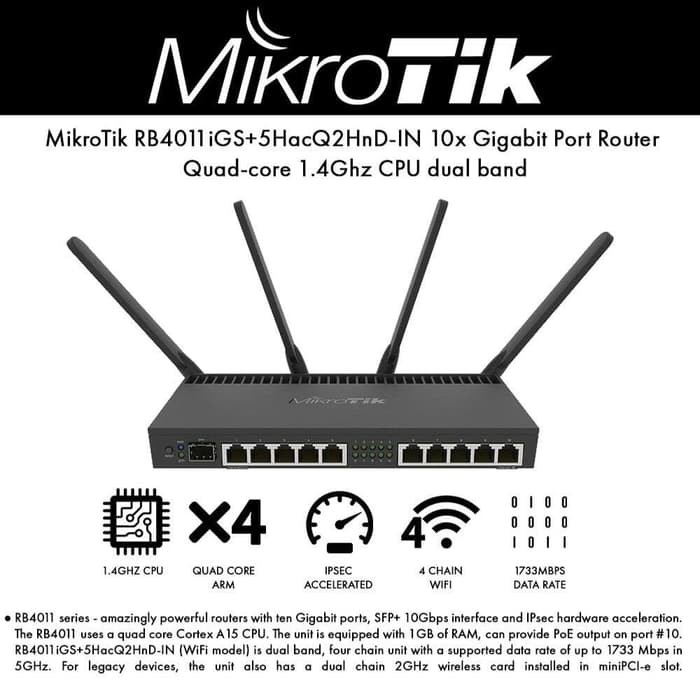

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port 10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).


Specifications
Details
Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 45°C
Powering
Details
PoE in Passive PoE
PoE out Passive PoE up to 57V
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 420 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 44 W
Max power consumption without attachments 23 W
Wireless
Details
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11ac MU-MIMO
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model R11e-2HnD
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD
Ethernet
Details
10/100/1000 Ethernet ports 10
