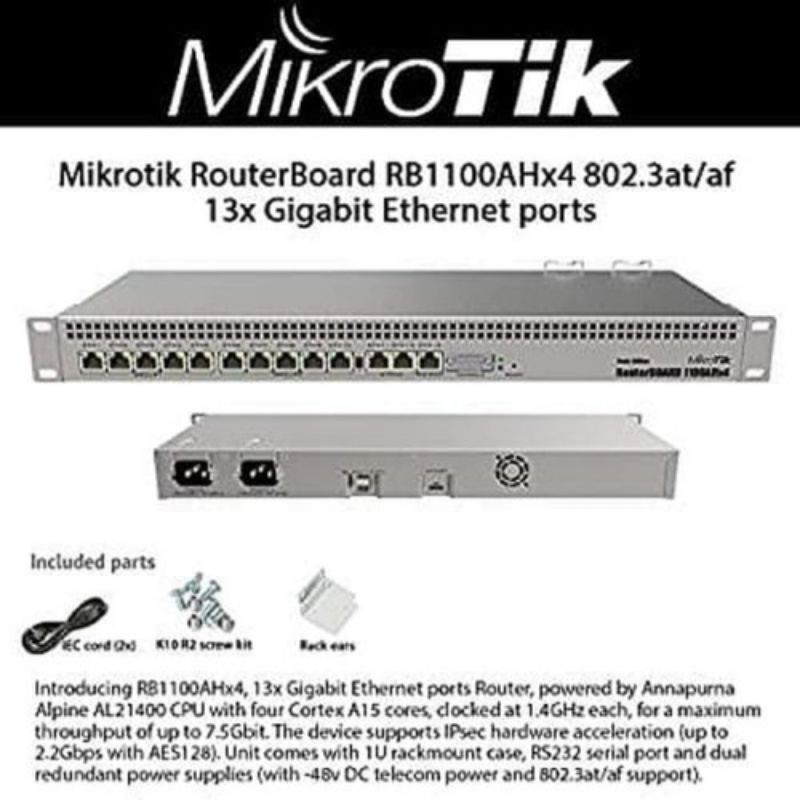

Detail Mikrotik RB1100AHX4 X4 Powerful 1U rackmount router with 13x Gigabit LAN
ntroducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Specification : Product code : RB1100x4 Architecture : ARM 32bit CPU : AL21400-1400-A0-E-1AN-8-C CPU core count : 4 CPU nominal frequency : 1.4 GHz Dimensions : 444 x 148 x 47 mm License level : 6 Operating System : RouterOS Size of RAM : 1 GB Storage size : 128 MB Storage type : NAND
Powering : Max Power consumption : 20W PoE in : 802.3af/at PoE in input Voltage : 20-57 V Number of AC inputs : 2 AC input range : 100-240 V Number of DC inputs : 2 (2-pin terminal, PoE-IN) 2-pin terminal input Voltage : -48, 12-57 V
Ethernet 10/100/1000 Ethernet ports : 13
Peripherals Serial port : RS232
Other Current Monitor : Yes PCB temperature monitor : Yes Voltage Monitor : Yes
Included parts : K10 R2 screw kit Rack ears IEC cord IEC cord
