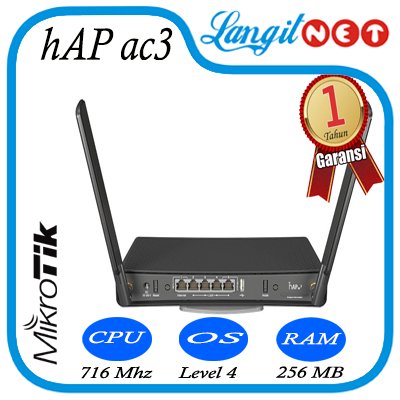

MIKROTIK RB D53iG 5HacD2HnD hAP ac3

Detail MIKROTIK RB D53iG 5HacD2HnD hAP ac3

Specifications
Details
Product code RBD53iG-5HacD2HnD
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 251 x 129 x 39 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40C to 70C
IPsec hardware acceleration Yes
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200
Ethernet
Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 30 W
Max power consumption without attachments 12 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
PoE-out
Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input < 30 V) 0.5 A
Max total out (A) 0.5 A
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
Details
Mode button Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
Included parts
24V 1.5A power adapter
Base leg and pads
K-47 fastening set
HGO indoor antenna kit
