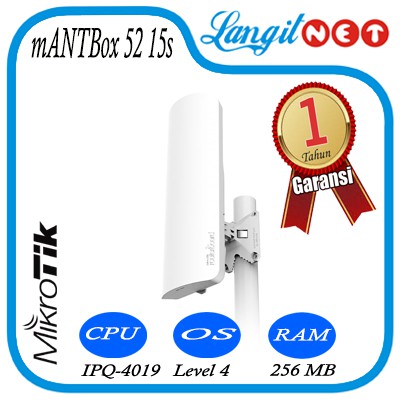

MIKROTIK RB D22UGS 5HPacD2HnD 15S / mANTBox 52 15s A dual-band 2.4/5 GHz

Detail MIKROTIK RB D22UGS 5HPacD2HnD 15S / mANTBox 52 15s A dual-band 2.4/5 GHz

Specifications
Details
Product code RBD22UGS-5HPacD2HnD-15S
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
Dimensions 140 x 348 x 82 mm
RouterOS license 4
Operating System RouterOS
PoE in 802.3af/at
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to +70°C
IPsec hardware acceleration Yes
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 12
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 15
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP ports 1
Peripherals
Details
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP55
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -94
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75
MCS9 23 -72

Included parts :
K-41 fastening set
Hose clamp 1
QMP
48 V 0.95 A power adapter
Gigabit PoE injector
