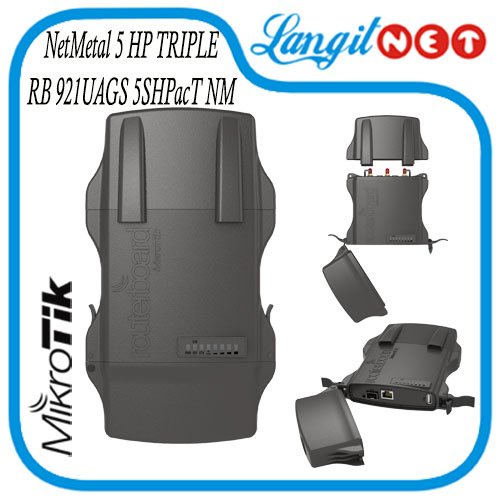

MIKROTIK RB 921UAGS 5SHPacT NM NetMetal 5 HP TRIPLE CHAIN

Detail MIKROTIK RB 921UAGS 5SHPacT NM NetMetal 5 HP TRIPLE CHAIN

Specifications
Details
Product code RB921UAGS-5SHPacT-NM
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 143x247x48mm (PCB)
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40C to 70C
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 25 W
Max power consumption without attachments 21W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 1300 Mbit/s
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9880
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP DDMI yes
SFP ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 31 -81
MCS0 33 -96
MCS7 31 -77
MCS9 27 -72

Included parts
- 24V 1.2A power adapter
- Metal ring (one)
- DIN mount (K-27)
- Gigabit PoE injector
