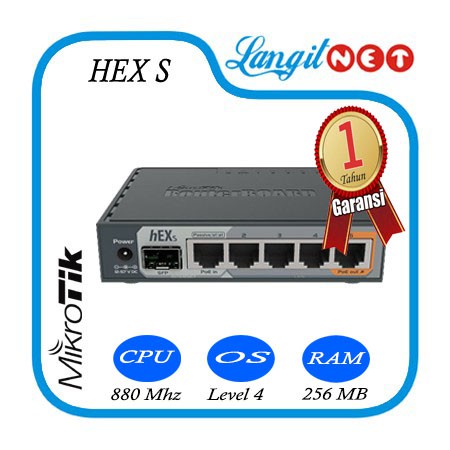

MIKROTIK RB 760iGS hEX S

Detail MIKROTIK RB 760iGS hEX S

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Product code RB760iGS
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Dimensions 113 x 89 x 28 mm
License level 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40C to 70C
Powering
Details
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 12-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 500 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 24 W
Max power consumption without attachments 6 W

Ethernet
Details
10/100/1000 Ethernet ports 5

Fiber
Details
SFP ports 1

Peripherals
Details
Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
