MIKROTIK RB 450 Gx4 RB450GX4

Detail MIKROTIK RB 450 Gx4 RB450GX4

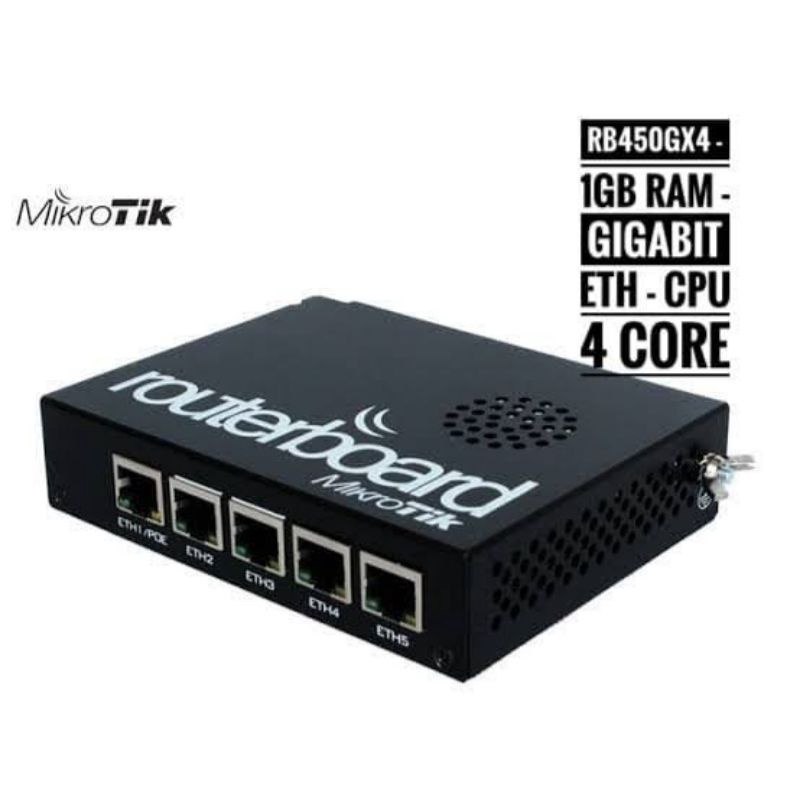

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.

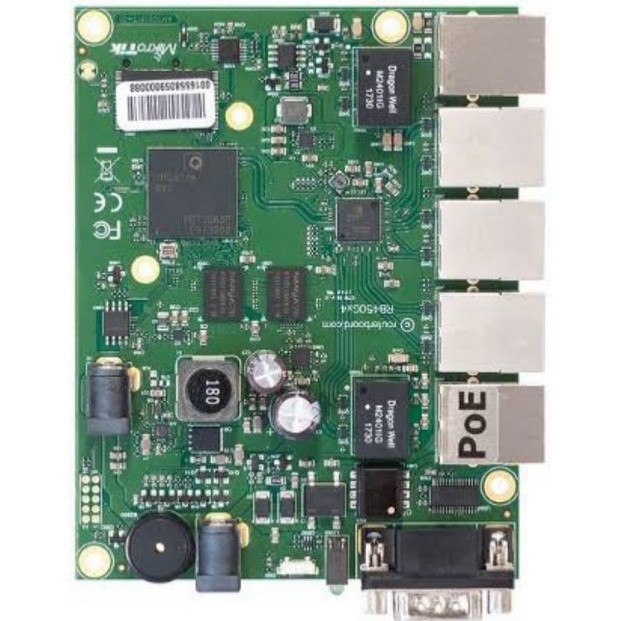

It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.

The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 90 x 115 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in 802.3af/at
PoE out Passive PoE
PoE in input Voltage 12-57 V
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max out per port output (input > 30 V) 500 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 16 W
Max power consumption without attachments 4 W

Ethernet
Details
10/100/1000 Ethernet ports 5

Peripherals
Details
Memory card type microSD
Serial port RS232

Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes

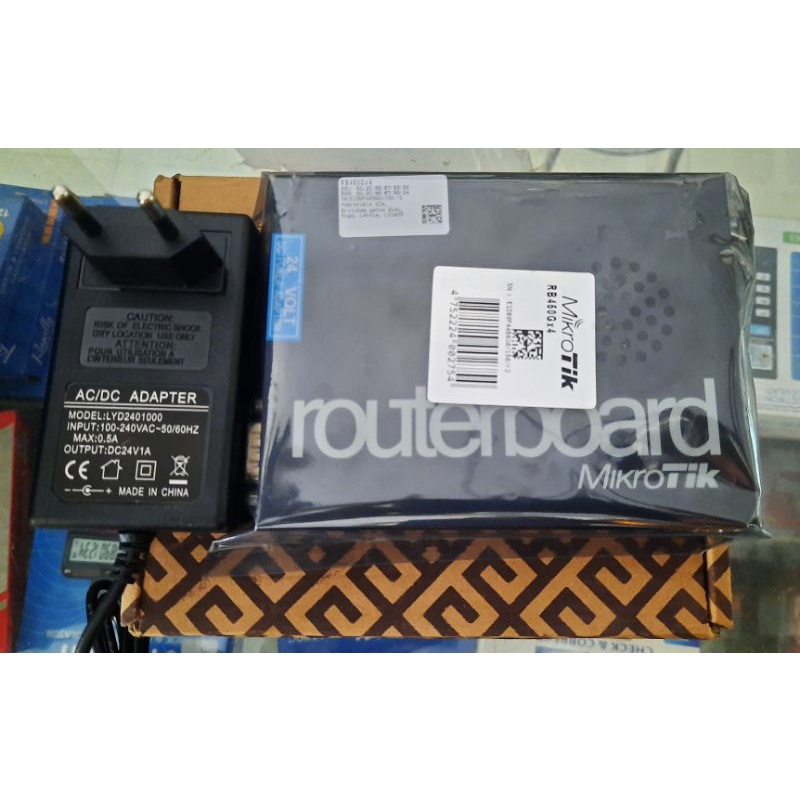

Isi Dos: Mikrotik RB 450 Gx4, Adaptor power 24V 1A
