MIKROTIK RB 4011iGS+RM

Detail MIKROTIK RB 4011iGS+RM

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

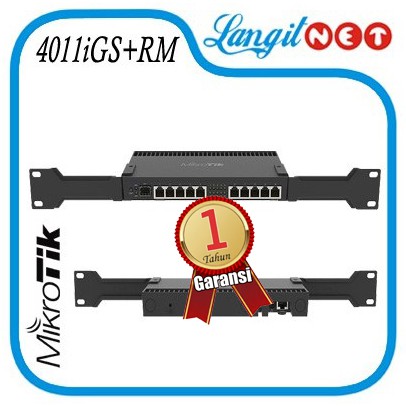

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Note: The RB4011 does not support Passive DAC modules, 1GB copper SFP modules and SFP GPON modules.

Details
Product code RB4011iGS+RM
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1400 MHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in Passive PoE
PoE out Passive PoE up to 57V
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 400 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 33 W
Max power consumption without attachments 18 W
Ethernet
Details
10/100/1000 Ethernet ports 10
Fiber
Details
SFP+ ports 1
Peripherals
Details
Serial port RJ45
