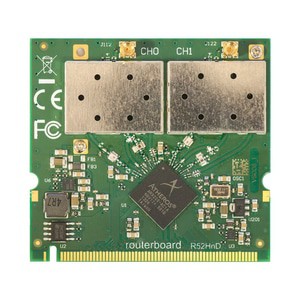

The R52HnD is an update to our popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz and now has even higher power (400mW) and improved ESD protection (+/- 15 kV).
Spesifikasi
Dual band IEEE 802.11a/b/g/n standard Output Power of up to 25dBm @ a/g/n Band Support for up to 2x2 MIMO with spatial multiplexing Four times the throughput of 802.11a/g Atheros AR9220, chipset High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption 2 X MMCX Antenna Connector Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM; DSSS: DBPSK, DQPSK, CCK Operating temperatures: -50C to +60C Idle power consumption 0.4W Max power consumption 7W MiniPCI IIIA+ design (3mm longer than MiniPCI IIIA) 1.5mm heatsink, 3mm RF shield thickness 15KV ESD protection on RF ports
