MIKROTIK MANTBOX 2 12S / RB 911G 2HPND 12S

Detail MIKROTIK MANTBOX 2 12S / RB 911G 2HPND 12S

POSTEL : 58451/SDPPI/2018
VIDEO PRODUK :
youtube.com/watch?v=AyW9d-1ZyyA

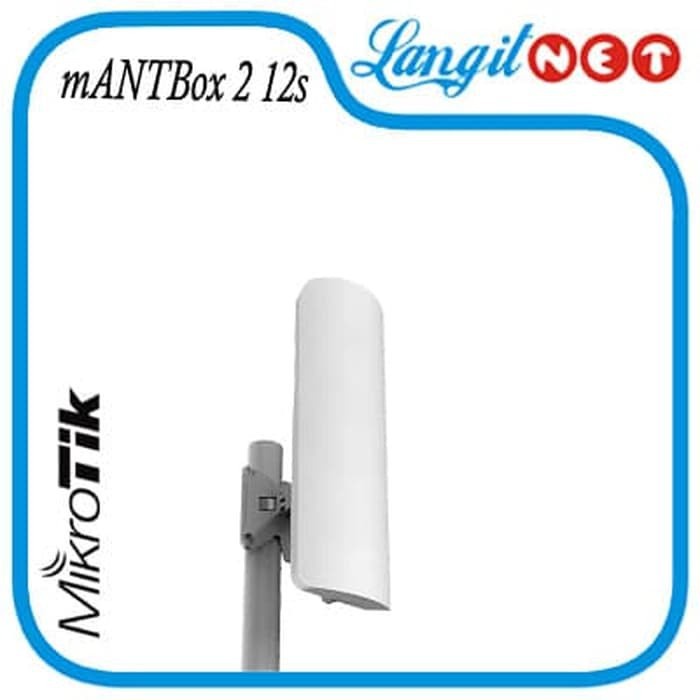

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.

Product code RB911G-2HPnD-12S
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 140 x 348 x 82 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 11 W
Wireless
Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 12
Wireless 2.4 GHz chip model AR9342
Ethernet
Details
10/100/1000 Ethernet ports 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -94
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 24 -73

Gambar produk
