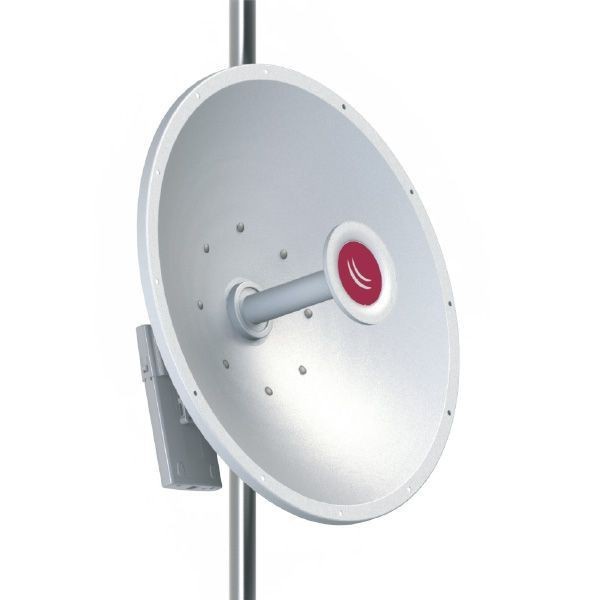

MikroTik mANT 30 PA MTAD

Detail MikroTik mANT 30 PA MTAD

Deskripsi : MikroTik mANT 30 PA MTAD-5G-30D3-PA

The MikroTik MTAD-5G-30-series is a carrier-class 30dBi antenna, designed to seamlessly with MikroTik Basebox for a backhaul Point to Point link. Installing the BaseBox onto the antenna requires no special tools, you simply snap it into place with the mounts provided and voila! a powerful long-range Point to Point link is at your fingertips.

This dish can be adjusted to a slanted polarization at 45deg. The instructions can be found here.

Slant Features:

• Reduce RF interference in signal congested areas
• Reduce the impact on local microwave devices
• Unify the channel output if link deployed over a body of water

Electrical Specifications

• Frequency Range: 4.7-5.875 GHz
• Gain: 30dBi typically
• Dual Polarization: Vertical and Horizontal
• 3dB Beamwidth: +/-2.5 deg
• Standards: Complies with EN 302 326 DN1, DN2, DN3, DN5
• VSWR: ≤ 1.4 type, ≤ 1.8 max
• Port to Port Isolation: >40dB min
• Front-to-Back Ratio: >30 dB
• Cross Polarization: >40 dB
• Power Rating: 100 watts
• Impedance: 50 ohms
• Elevation adjustment range: +/- 15 deg

Physical/Environmental Specifications

• Reflector: Aluminum
• Outdoor Rating: ETSI EN 300 019-2-4
• Wind Survivability: 125mph (201kph)
• Wind Load (125 mph): 400 lbs, 174 lbs with radome
• Connector (2): Type RPSMA
