Mikrotik LTE Products RB912R-2nD-LTm LtAP mini

Detail Mikrotik LTE Products RB912R-2nD-LTm LtAP mini

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

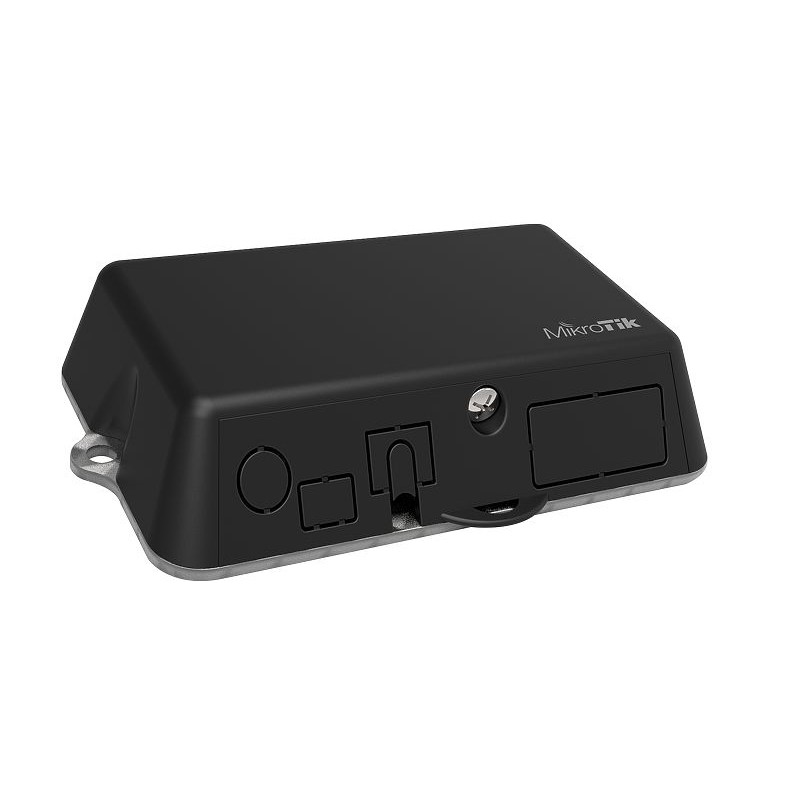

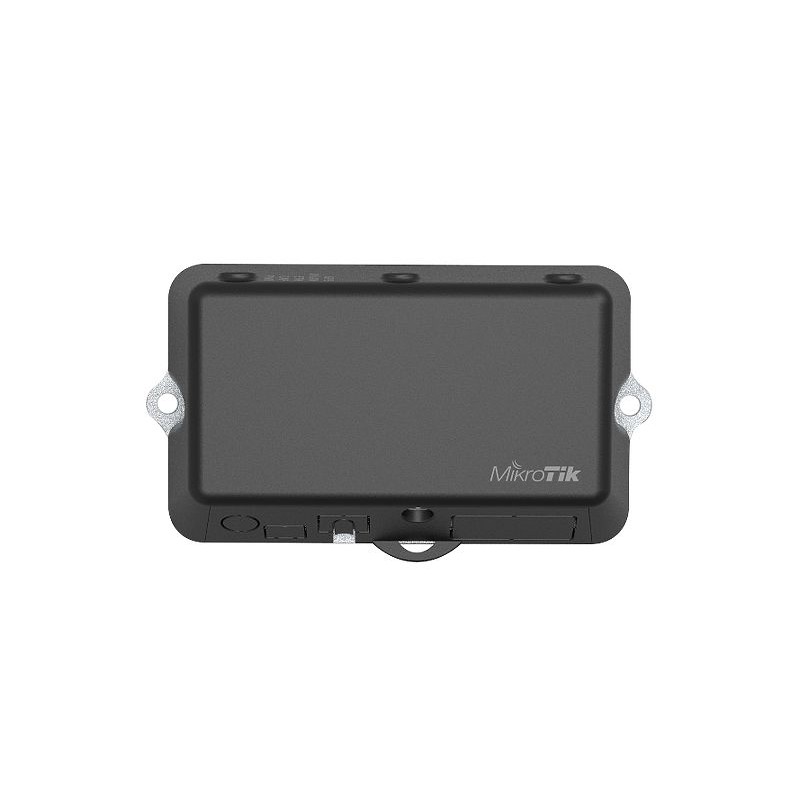

LtAP mini Small weatherproof wireless access point with LTE antennas, two SIM slots, integrated GPS and miniPCI-e slot

The LtAP mini is a small weatherproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

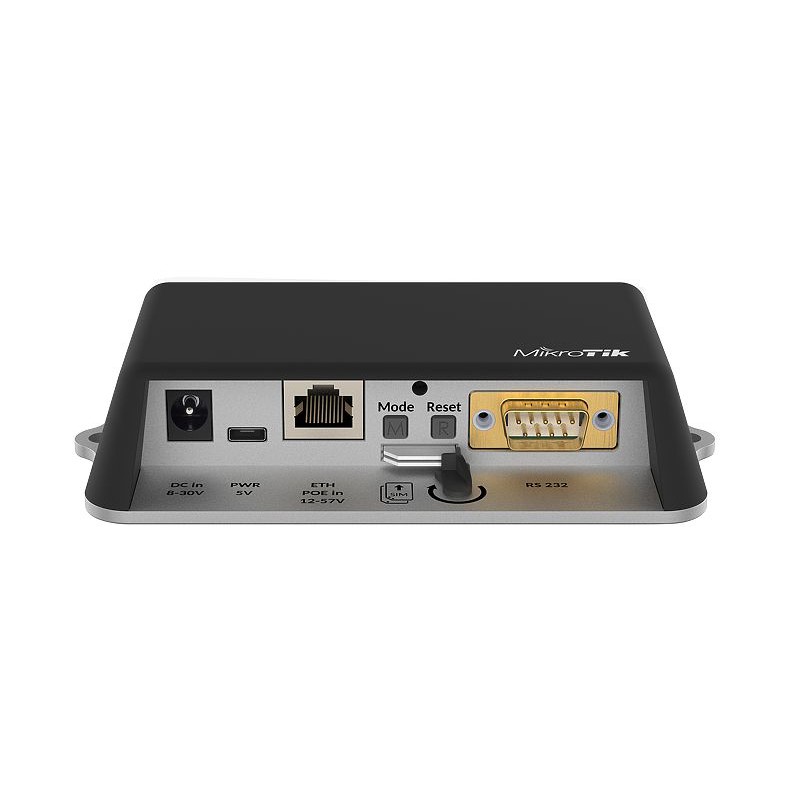

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

Specifications
Details
Product code RB912R-2nD-LTm
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 139 x 77 x 28,5 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-30 V
Max power consumption 9 W
Max power consumption without attachments 4 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
Mode button Yes
GNSS standards GPS
GPS RF connector type uUFL

Gambar produk
