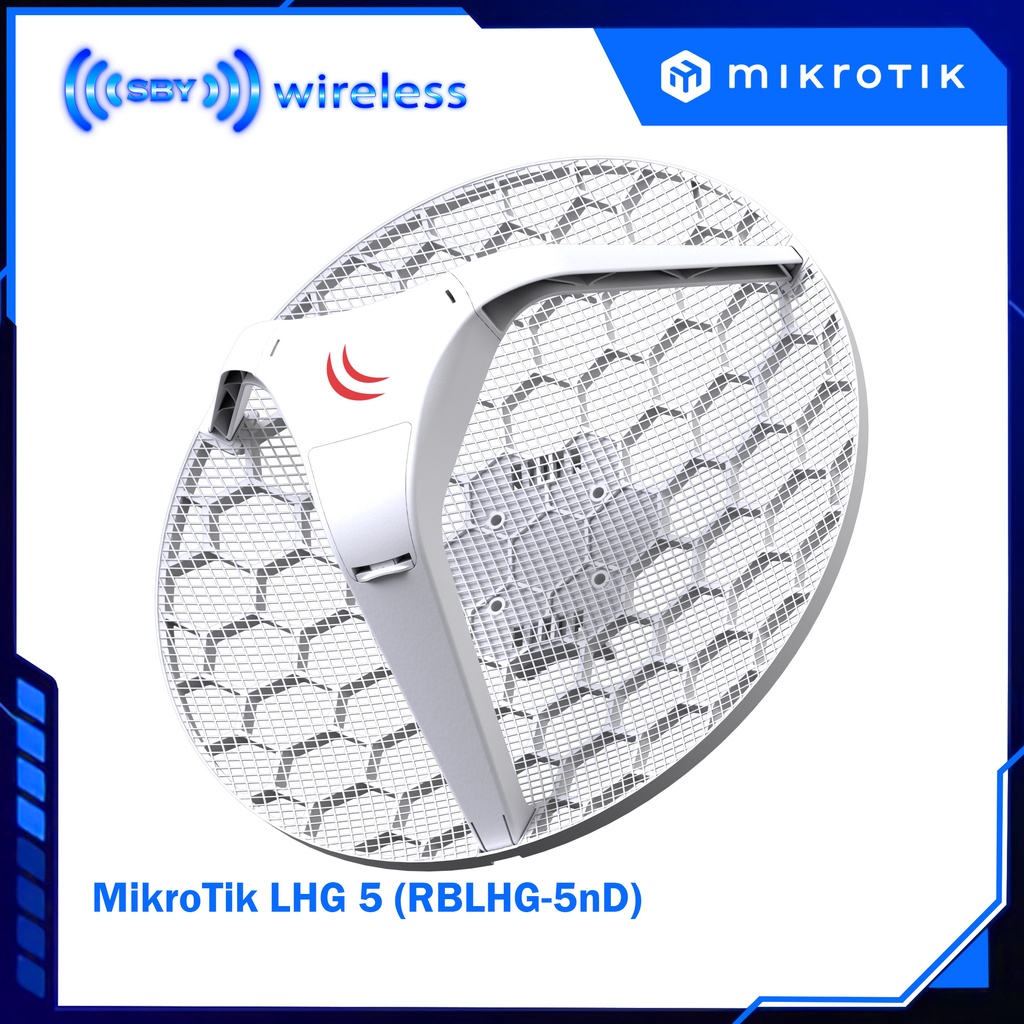

MikroTik LHG 5 (RBLHG-5nD) Embedded 5Ghz LHG 5nD / RB LHG-5nd SuperChannel READY

Detail MikroTik LHG 5 (RBLHG-5nD) Embedded 5Ghz LHG 5nD / RB LHG-5nd SuperChannel READY

MikroTik LHG 5 (RBLHG-5nD) Embedded 5Ghz LHG 5nD / RB LHG-5nd

SuperChannel READY Boss kuuhh.

Mohon Perhatian !!!!
TIDAK SUPPORT KARTU PERDANA GSM 3G/ 4G dan atau MODEM USB 3G/4G
TIDAK ADA SLOT SIMCARD

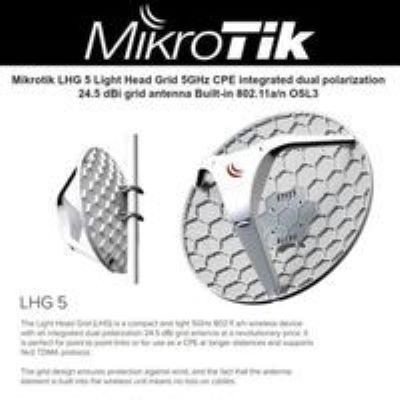

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
- RBLHG-5nD (International) supports 5150MHz-5875MHz range.

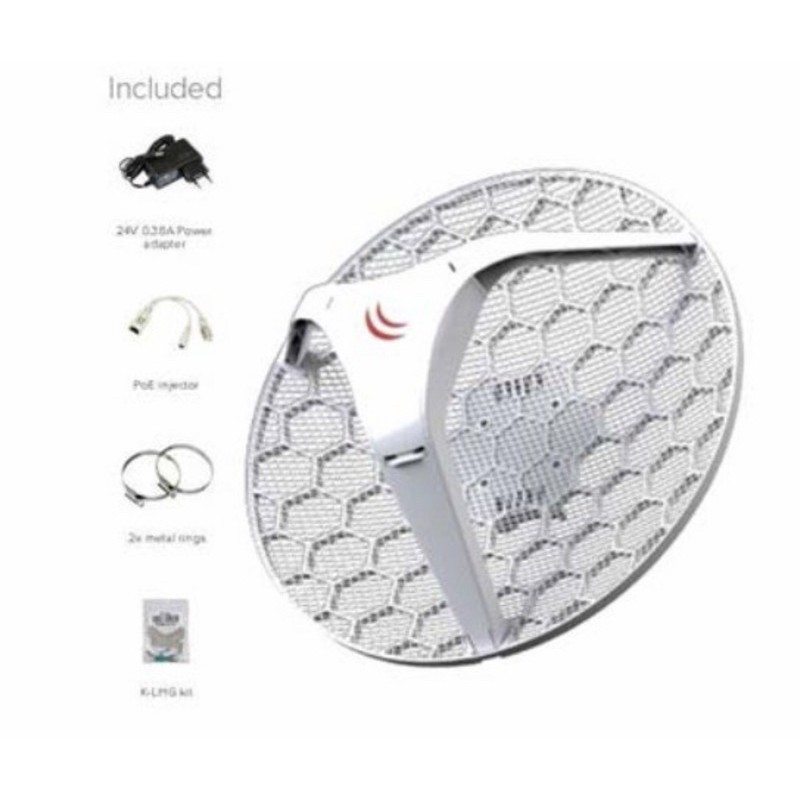

1 Set RBLHG-5nD terdiri dari :
Routerboard RBLHG-5nD dengan outdoor Grid Antenna 5Ghz 24.5dbi
1 port ethernet (1 untuk PoE)
Power Adaptor 24 V
Power over Ethernet Spliter
2 pcs metal ring
Screw Kit

Antenna Specification :
Operating frequency : 5150 - 5875 MHz
Antenna gain : 24.5 +/- 0.5 dBi
Antenna beam width : 7°
Cross polar : 15 dBi
Port to port isolation : 20 dB
Front to back ratio : 25 dB
Return loss : 10 dB
VSWR : 1.925:1

Spesifikasi RBLHG-5nD :
Product code RBLHG-5nD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 1
Wireless standards 802.11a/n
Wireless chip model AR9344
PoE in Yes
Supported input voltage 11 V - 30 V
Dimensions 391 x 222 mm; package 450 x 450 x 145 mm
Operating System RouterOS
Operating temperature range -40 to 70 C
License level 3
Antenna gain DBI 24.5
CPU AR9344
Max Power consumption 6W
Number of chains 2
Storage type FLASH
Storage size 16 MB

NB : Kemasan Dus repacking ( karena Unit diambil dari LHG-5nd- 3Pack)
#MIKROTIK#RBLHG-5nD

Gambar produk
