Mikrotik LDF2 RBLDF-2nD LDF-2ND LDF 2ND

Detail Mikrotik LDF2 RBLDF-2nD LDF-2ND LDF 2ND

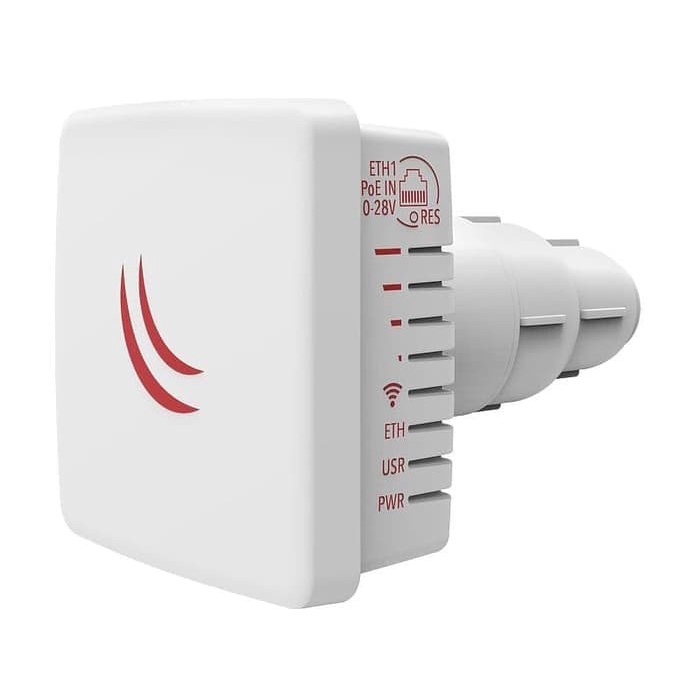

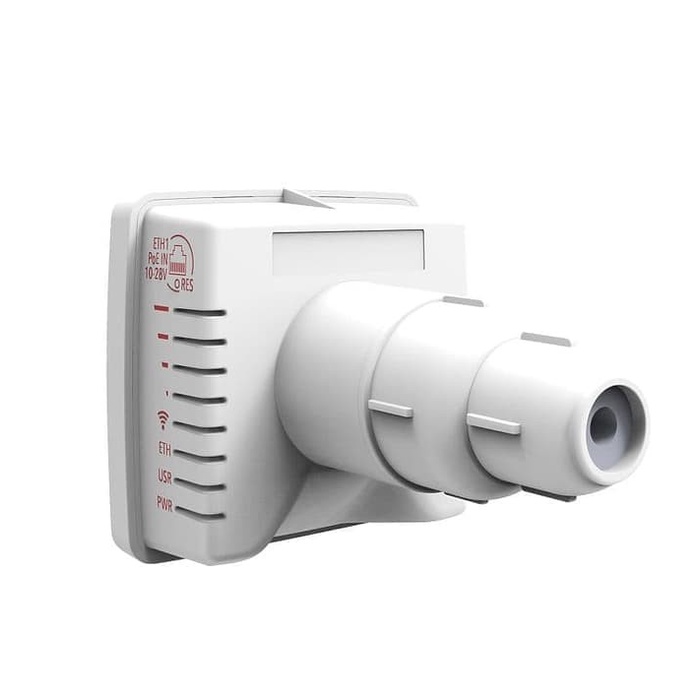

The LDF (Lite dish feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. All it takes is to find a spare satellite dish with an offset mount, and put your LDF device. The device comes preinstalled with RouterOS and is ready to use.

Details
Product code = RBLDF-2nD
Architecture = MIPSBE
CPU = QCA9533
CPU core count = 1
CPU nominal frequency = 650 MHz
Dimensions = 84mm x 84mm x 115mm
License = level 3
Operating System = RouterOS
Size of RAM = 64 MB
Storage size = 16 MB
Storage type = FLASH
Tested ambient temperature = -40°C .. +70°C
