MikroTik LDF 2 RBLDF-2nD

Detail MikroTik LDF 2 RBLDF-2nD

Deskripsi : MikroTik LDF 2nD RBLDF-2nD

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

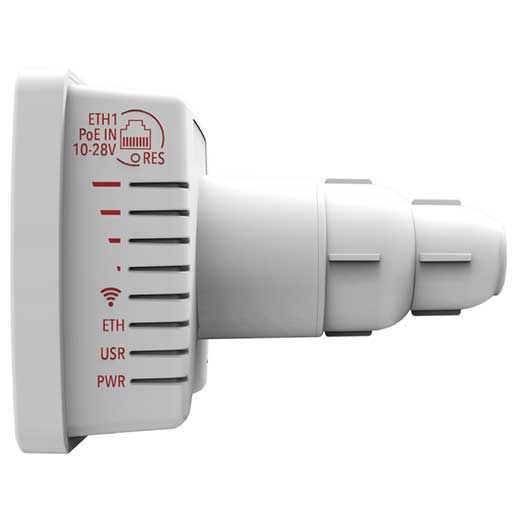

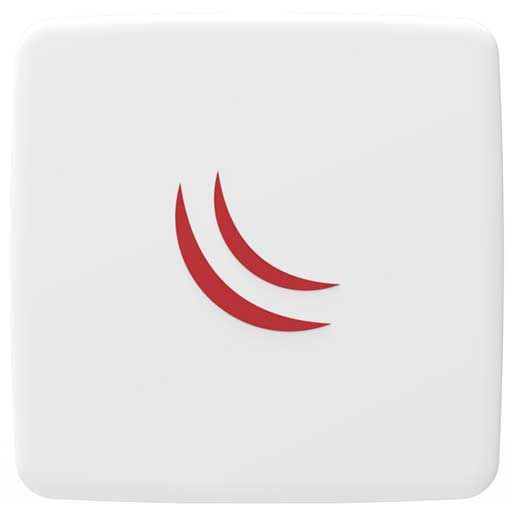

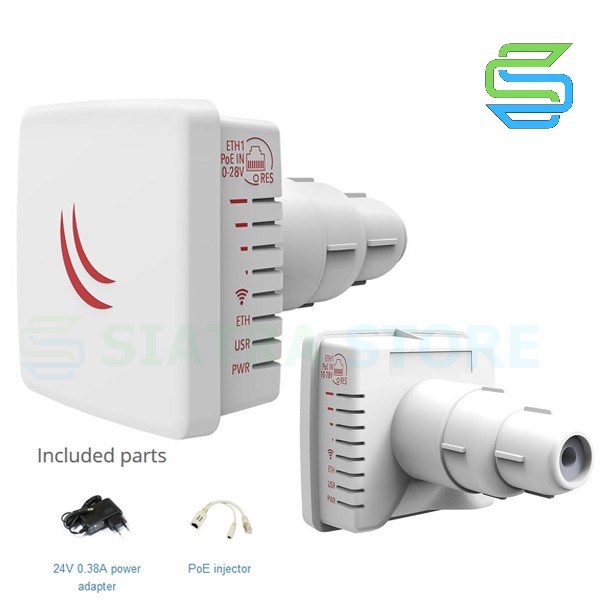

MikroTik LDF (Lite dish feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. All it takes is to find a spare satellite dish with an offset mount, and put your LDF device. The device comes preinstalled with RouterOS and is ready to use.

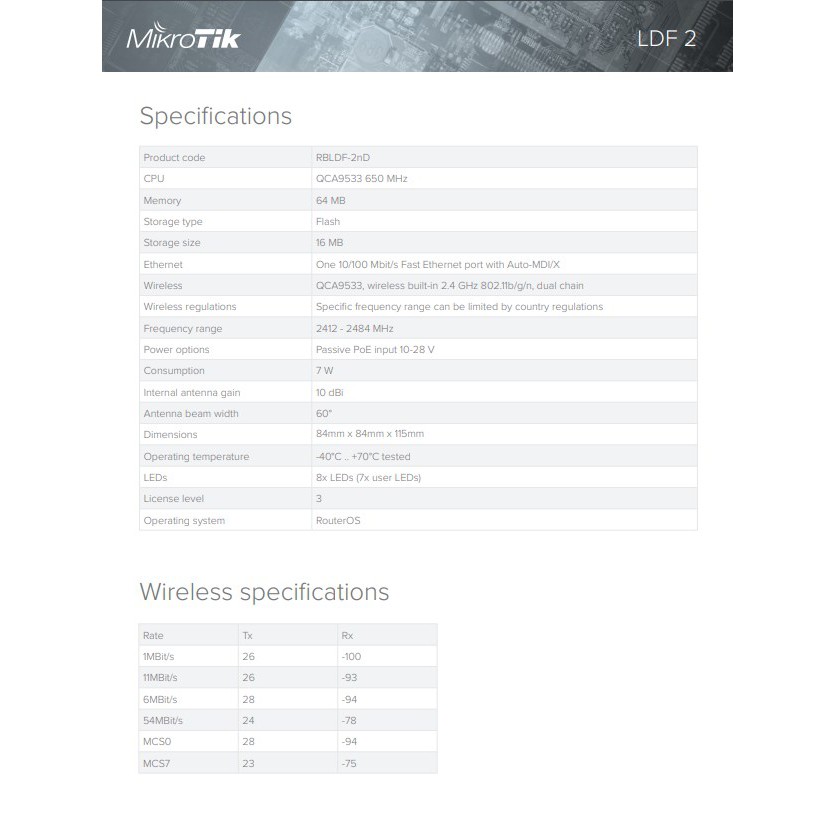

Product Specifications

• Product code: RBLDF-2nD
• CPU: QCA9533 650 MHz
• Memory: 64 MB
• Storage type: Flash
• Storage size: 16 MB
• Ethernet One: 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
• Wireless: QCA9533, wireless built-in 2.4 GHz 802.11b/g/n, dual chain
• Wireless regulations: Specific frequency range can be limited by country regulations
• Frequency range: 2412 - 2484 MHz
• Power options: Passive PoE input 10-28 V
• Consumption: 7 W
• Internal antenna gain: 10 dBi
• Antenna beam width: 60°
• Dimensions: 84mm x 84mm x 115mm
• Operating temperature: -40°C .. +70°C tested
• LEDs: 8x LEDs (7x user LEDs)
• License level: 3
• Operating system: RouterOS

Gambar produk
