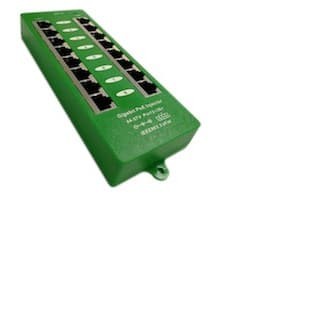

Mikrotik GAT-8 POE 8 Port 802.3af and 802.3at gigabit Injector

Detail Mikrotik GAT-8 POE 8 Port 802.3af and 802.3at gigabit Injector

GAT-8 sebuah 802.3at (Active) injector dengan 8 Gigabit port.
Mampu memberikan daya ke 8 perangkat up-to 25 watts / port desain fanless.
8 Port 802.3af and 802.3at compliant gigabit Ethernet Injector
– no power unless a PoE device is attached
– 8 Shielded RJ-45 LAN
– 8 Shielded RJ-45 LAN+POE
– all 4 data pairs active for gigabit data rates
– shared data and power
– supports 802.3at class 0, 1, 2, 3, 4
• uPoE with optional WT-MMF-RJ45 cable for 4 pair power
• Wall mount Injector: 180 mm x 45mm x 25m
• 550 ma current limiter per port per 802.3at specifications
• No power is supplied to non-PoE devices
• Same voltage to all ports after negotiation
• Use with any Ethernet switch – passes all management info transparently
• Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at
• Standard power connector - 2.1mm x 5.5mm
• Additional Phoenix DC connector
- 3.5mm model 1844236
- pin 2 (minus) 3 (plus)
• Mode A power output via isolated transformer
- pins 1-2 (-)
- pins 3-6 (+)

Environmental
– operating temperature range – 0 to 50 deg C
– storage temperature range – 0 to 50 deg C
– relative humidity range – 5 to 90% non condensing
– the device is PELV per NFPA standard 79 – protected extra low voltage
– no cooling is required, no fans. Quiet operation
