Mikrotik Ethernet Routers CCR1009-7G-1C-PC

Detail Mikrotik Ethernet Routers CCR1009-7G-1C-PC

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes:

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
Details
Product code CCR1009-7G-1C-PC
Architecture TILE
CPU TLR4-00980CH-10CE-A3b
CPU core count 9
CPU nominal frequency 1 GHz
Dimensions 272x190x47mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20C to +60C
Powering
Details
Max Power consumption 25W
Number of DC inputs 2 (DC jack, PoE-IN)
PoE in Passive PoE
DC jack input Voltage 18-57 V
PoE in input Voltage 18-57 V
Ethernet
Details
10/100/1000 Ethernet ports 7
Ethernet Combo ports 1
Peripherals
Details
Number of USB ports 1
Serial port RS232 + Header
USB Power Reset Yes
USB slot type microUSB type AB

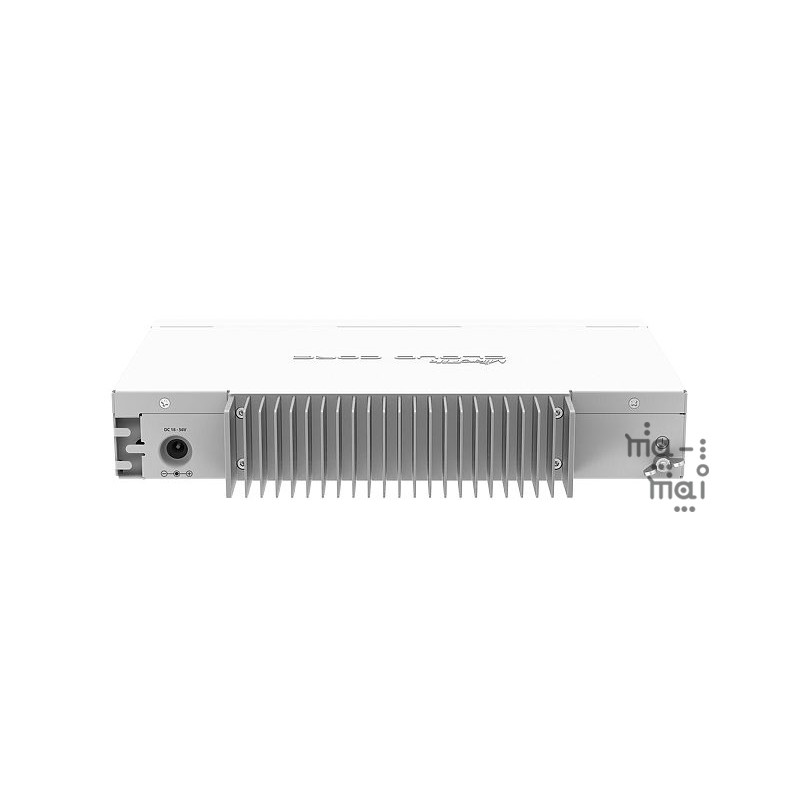

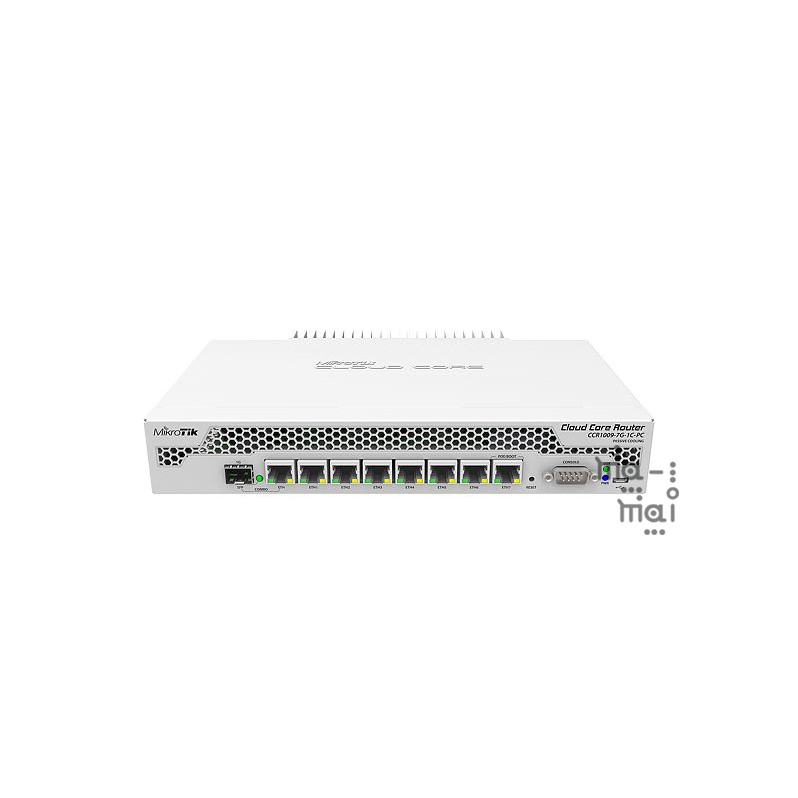

Gambar produk
