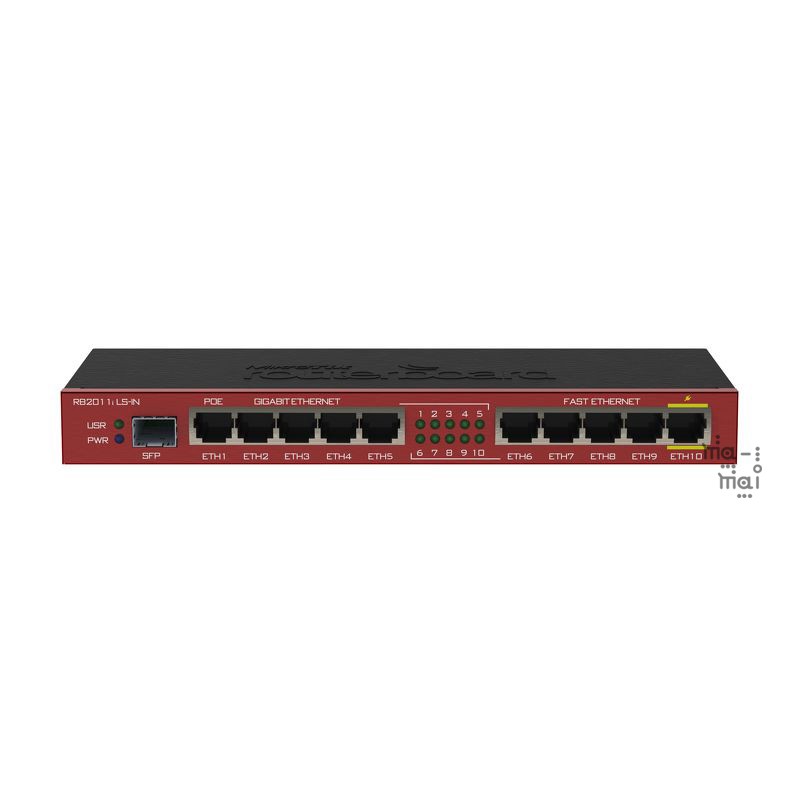

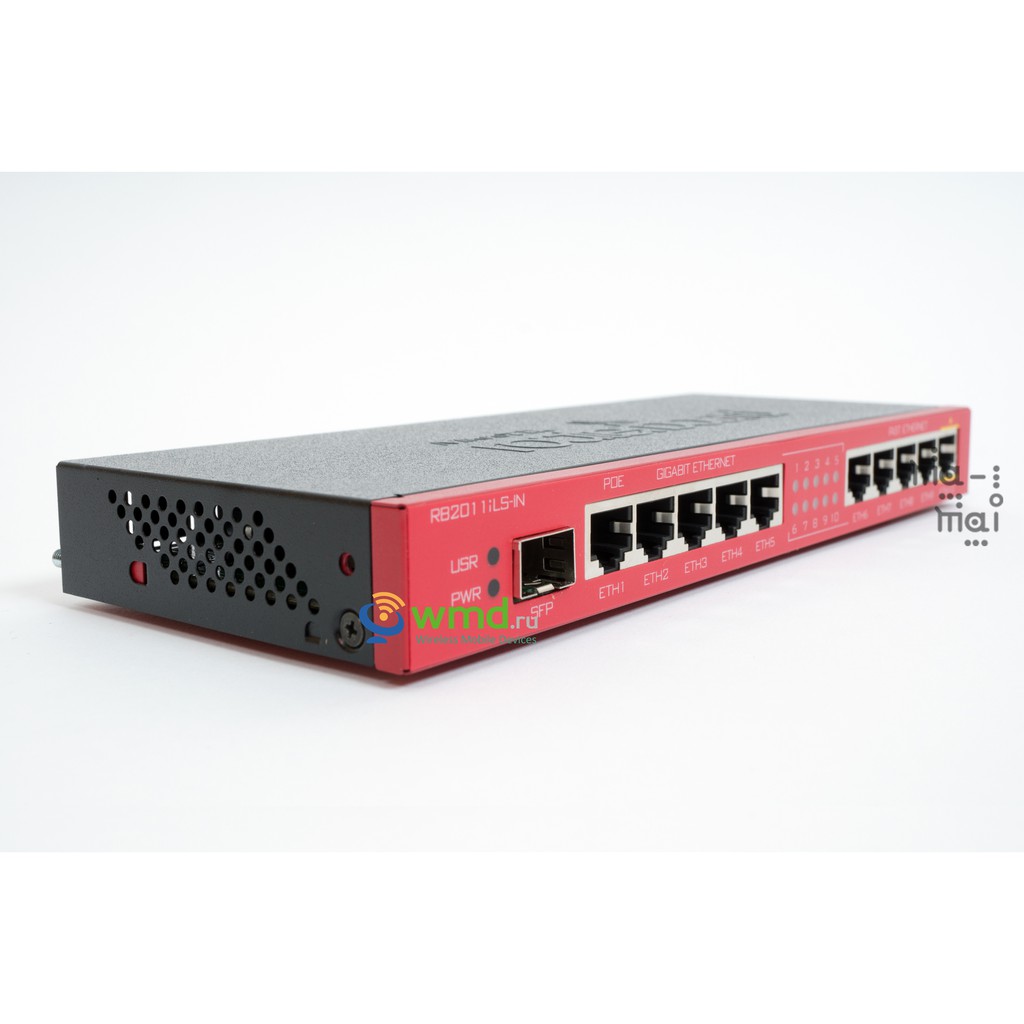

Mikrotik Ethernet Routers RB2011iLS-IN

Detail Mikrotik Ethernet Routers RB2011iLS-IN

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

RB2011iLS is our first product with SFP cage for gigabit SFP transceivers and ideal solution for FTTH (Fiber To The Home) implementations.

The RB2011iLS has 11 ports: Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wirespeed Fiber-to-Copper converter, and additional five Fast Ethernet ports. Board can be powered by power jack or PoE.

Note that SFP transceiver is NOT included. RB2011iLS supports any 1.25G SFP transceivers that is within the SFF Committee specifications for SFP Transceivers. RB2011LS doesnt have hardware support for PON (Passive Optical Network).

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Its powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

RouterBOARD 2011iLS-IN comes with desktop enclosure and power supply.

Wall mount kit for network closet is available for purchase as an optional accessory.

Product code RB2011iLS-IN
Architecture MIPS-BE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 214mmx86mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -35C to +65C
Powering
Details
Max Power consumption 6W
Number of DC inputs 2 (DC jack, PoE-IN)
PoE in Passive PoE
DC jack input Voltage 8-30 V
PoE in input Voltage 8-30 V
PoE out Passive PoE
Ethernet
Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
Fiber
Details
SFP DDMI Yes
SFP ports 1
