Mikrotik Ethernet Routers RB960PGS hEX PoE

Detail Mikrotik Ethernet Routers RB960PGS hEX PoE

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

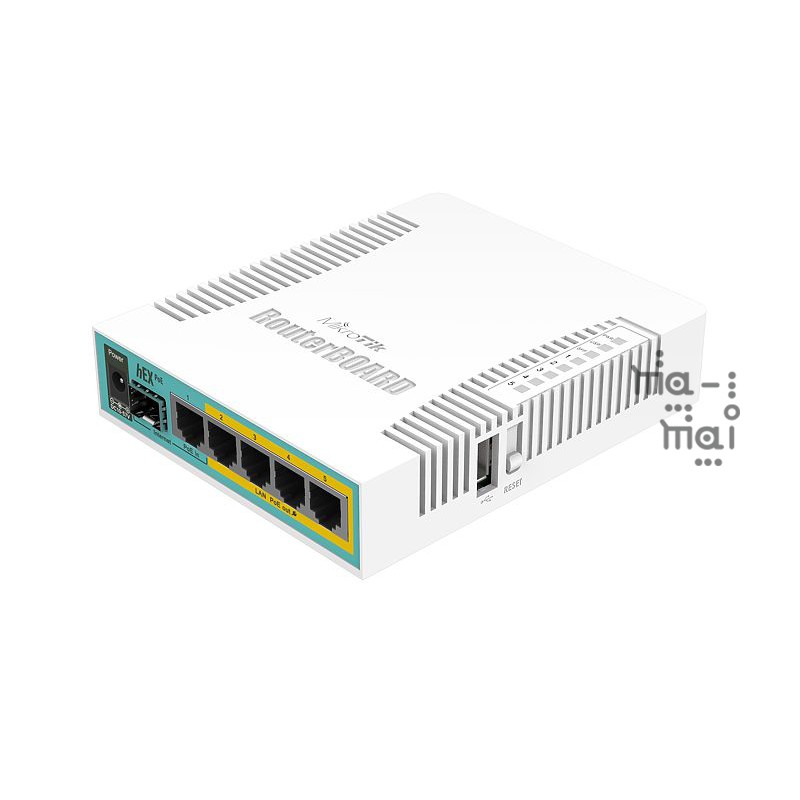

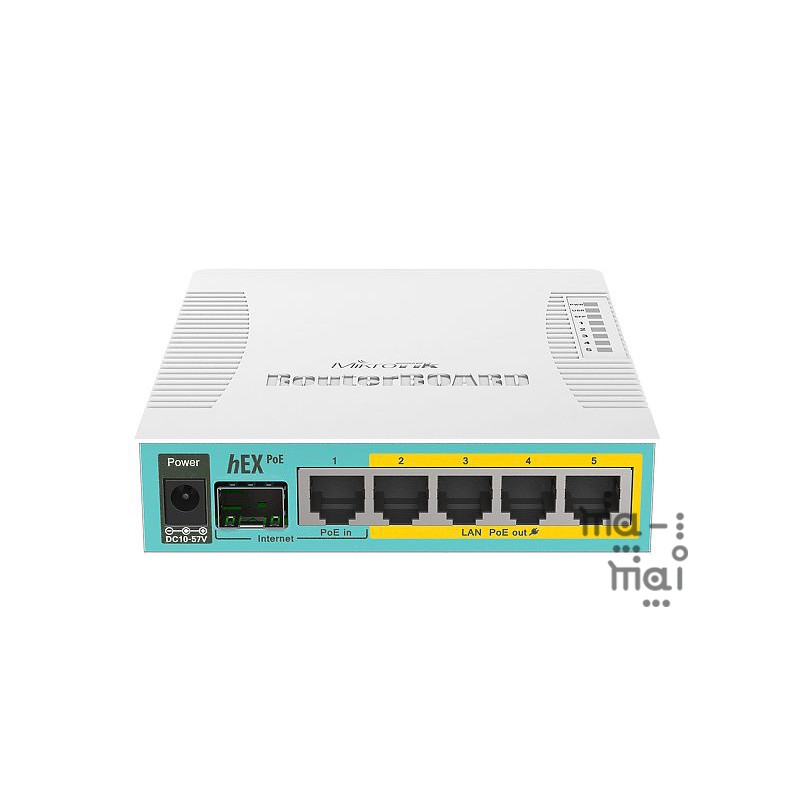

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Details
Product code RB960PGS
Architecture MIPS-BE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
License level 4
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40 + 70 C


Powering
Details
Max Power consumption 9W
Number of DC inputs 2 (DC jack, PoE-IN)
PoE in Passive PoE
DC jack input Voltage 12-57 V
PoE in input Voltage 12-57 V
PoE out 802.3af/at
Ethernet
Details
10/100/1000 Ethernet ports 5
Fiber
Details
SFP ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
