CCR1016-12S-1S+ 1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

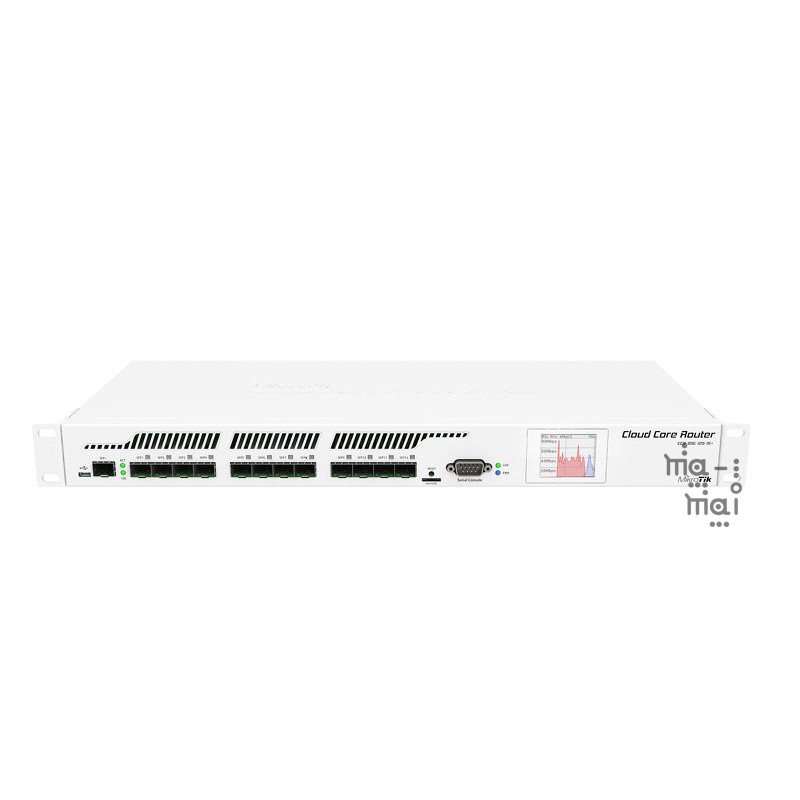

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

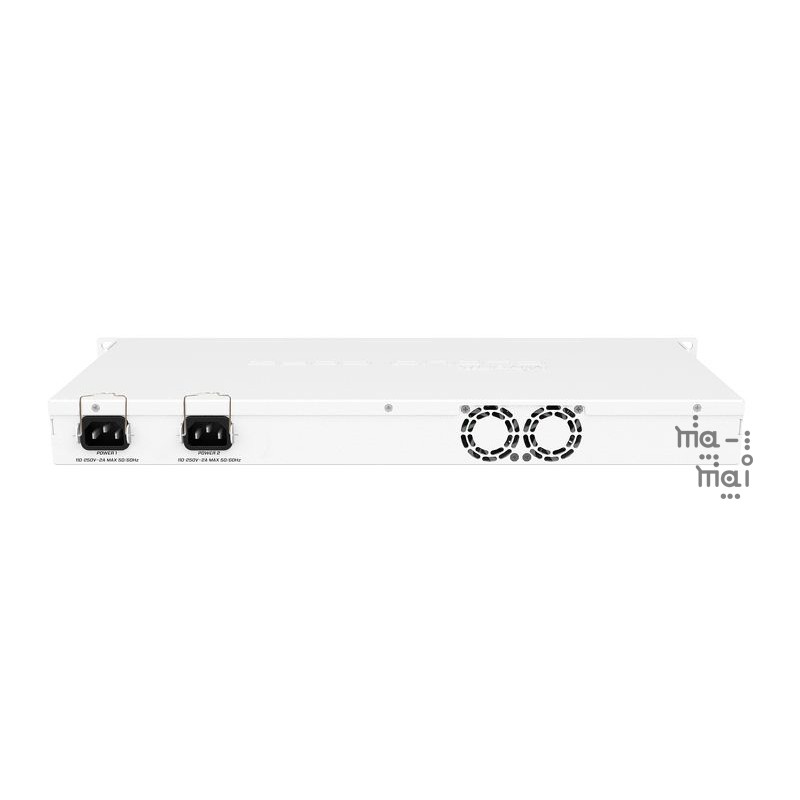

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

Specifications
Details
Product code CCR1016-12S-1S+
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
License level 6
Operating System RouterOS v6
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
Suggested price $745.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 49 W
Max power consumption without attachments 44 W
Fiber
Details
SFP DDMI Yes
SFP ports 12
SFP+ ports 1
Peripherals
Details
Memory card type microSD
Memory Cards 1
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
