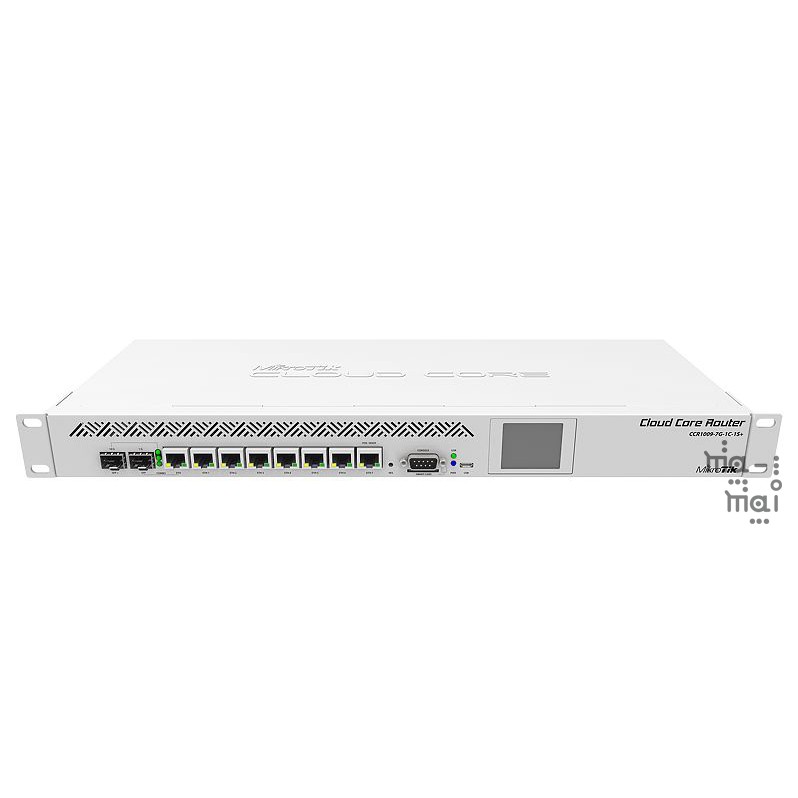

Mikrotik Ethernet Router CCR1009-7G-1C-1S+

Detail Mikrotik Ethernet Router CCR1009-7G-1C-1S+

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

CCR1009-7G-1C-1S+ 1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

Specifications
Details
Product code CCR1009-7G-1C-1S+
Architecture TILE
CPU TLR4-00980
CPU core count 9
CPU nominal frequency 1.2 GHz
Dimensions 444x175x47mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
Suggested price $495.00
Powering
Details
PoE in Passive PoE
PoE in input Voltage 15-57 V
Number of AC inputs 2

Gambar produk
