Mikrotik CRS318-1Fi-15Fr-2S-OUT netPower 15FR|netpower15FR

Detail Mikrotik CRS318-1Fi-15Fr-2S-OUT netPower 15FR|netpower15FR

Mikrotik CRS318-1Fi-15Fr-2S-OUT netPower 15FR

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

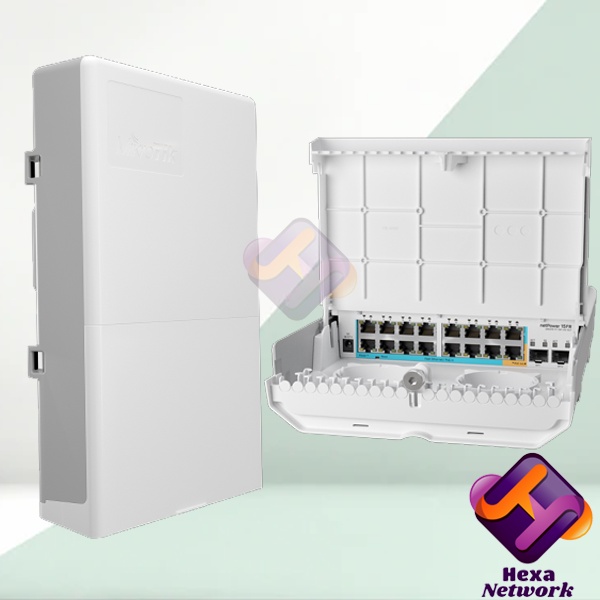

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

Specifications Details
Product code CRS318-1Fi-15Fr-2S-OUT
Architecture ARM 32bit
CPU 98DX224S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 304 x 212 x 71 mm
RouterOS license 5
Operating System SwOS / RouterOS (Dual boot)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering Details
Number of DC inputs 16 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 29 W
Max power consumption without attachments 10 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V (recommended 36-57V)

PoE-out
PoE-out ports Ether15
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.75 A
Max out per port output (input 30-57 V) 0.5 A
Max total out (A) 0.75 A
Ethernet Details
10/100 Ethernet ports 16
Fiber Details
SFP ports 2
