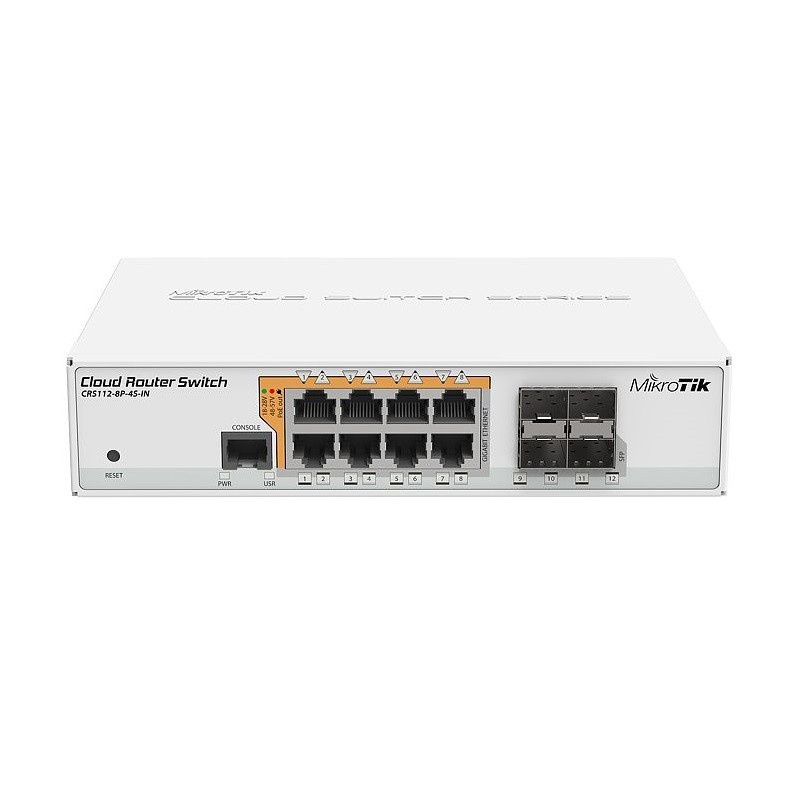

MikroTik CRS 112 8P 4S IN CRS112-8P-4S-IN

Detail MikroTik CRS 112 8P 4S IN CRS112-8P-4S-IN

Deskripsi : MikroTik CRS112 8P 4S IN CRS112-8P-4S-IN

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

MikroTiks new CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V

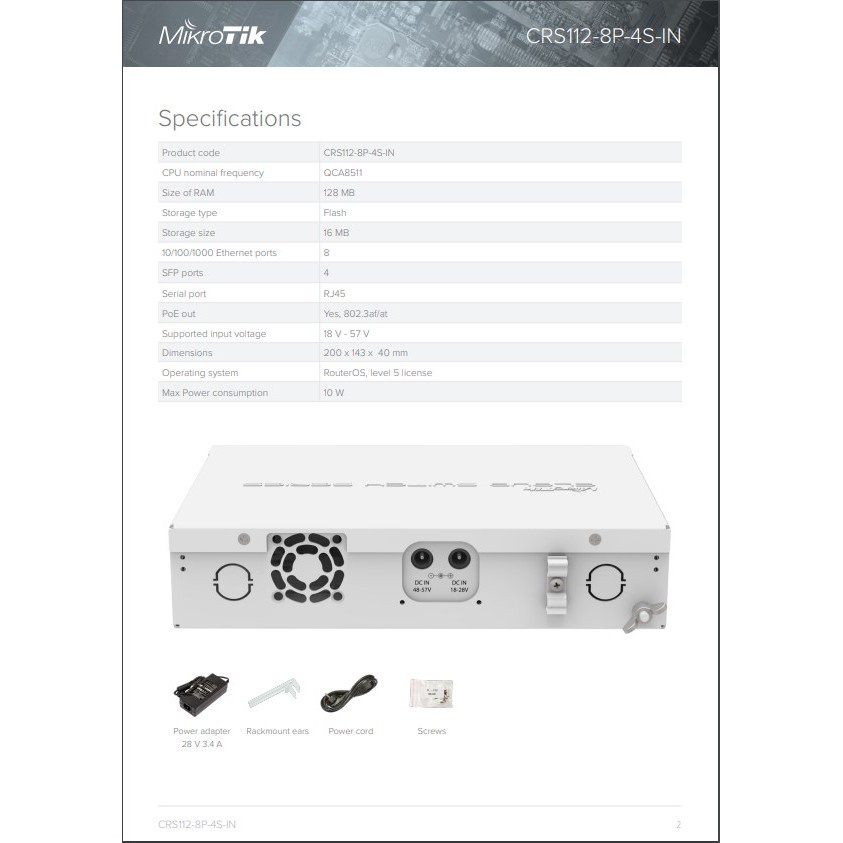

Specifications

• CPU nominal frequency: QCA8511
• Size of RAM: 128 MB
• Storage type: Flash
• Storage size: 16 MB
• 10/100/1000 Ethernet ports: 8
• SFP ports: 4
• Serial port: RJ45
• PoE out: Yes, 802.3af/at
• Supported input voltage: 18 V - 57 V
• Dimensions: 200 x 143 x 40mm
• Operating System: RouterOS, level 5 license
• Max Power Consumption: 10 W

Product Includes

(1) Power Adapter 28 V 3.4 A
(1) Rackmount ears
(1) Power Cord
(1) Screws

Switching features

• Non-blocking Layer 2 switching capabilities
• 16K host table
• IEEE 802.1Q VLAN
• Supports up to 4K simultaneous VLANs
• Port isolation
• Port security
• Broadcast storm control
• Port mirroring of ingress/egress traffic
• Rapid Spanning Tree Protocol
• Access Control List
• MikroTik neighbor discovery
• SNMP
• 9204-byte jumbo frames support
• IGMP snooping
• static link aggregation

Quick Specifications

• 8 Gigabit RJ45 Ports
• 4 SFP Ports
• Non-Blocking Throughout: 12 Gbps
• Switching Capacity: 24Gbps
• Forwarding Rate: 17.8 Mbps
• Maximum Power Consumption: 10 W (without PoE devices connected)
• Supports PoE+ IEEE 802.3at/af and 24 V Passive PoE
• Quiet, Fanless Operation
• Desktop-Rackmount
