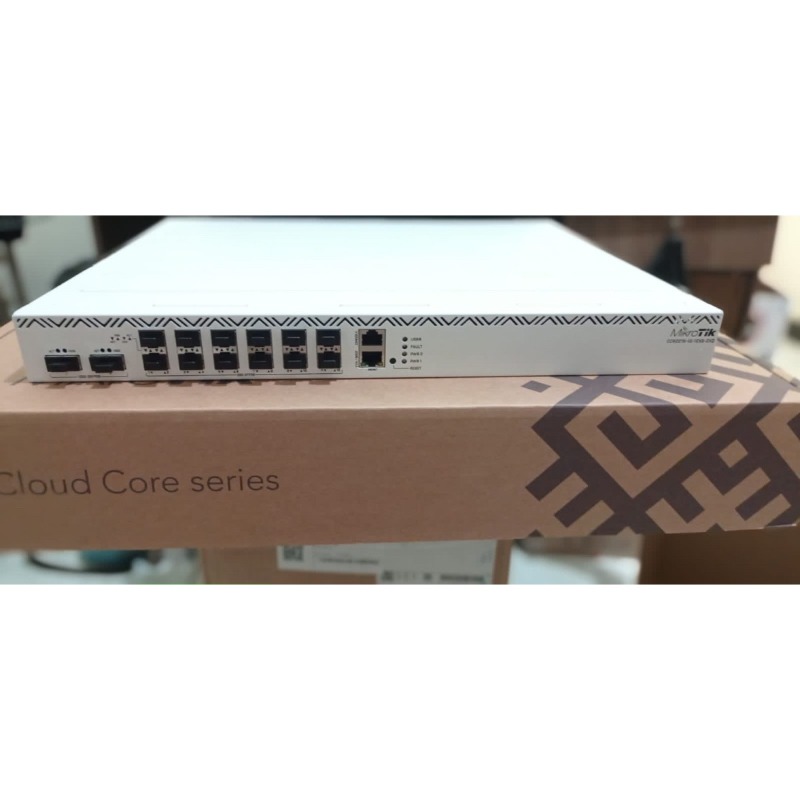

Mikrotik CCR2216-1G-12XS-2XQ

Detail Mikrotik CCR2216-1G-12XS-2XQ

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

Specifications

Details
Product code CCR2216-1G-12XS-2XQ
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX8525
Dimensions 443 x 367 x 44 mm
RouterOS license 6
Operating System RouterOS (v7 only)
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $2795.00
Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 128 W
Max power consumption without attachments 80 W
Cooling type 4 fans
Ethernet

Details
10/100/1000 Ethernet ports 1
Fiber

Details
Number of 25G SFP28 ports 12
Number of 100G QSFP28 ports 2
Peripherals

Details
Serial console port RJ45
Number of M.2 slots 2
Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
