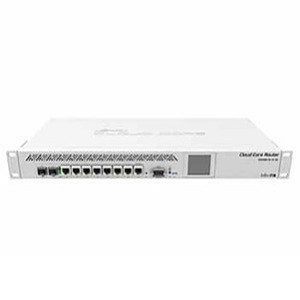

Mikrotik CCR1009-7G-1C-1S+

Detail Mikrotik CCR1009-7G-1C-1S+

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
Important changes
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
Product specifications
Details
Product code CCR1009-7G-1C-1S+
CPU nominal frequency 1.2 GHz
CPU core count 9
Size of RAM 2 GB
10/100/1000 Ethernet ports 7
Number of USB ports 1
Power Jack 3
Supported input voltage 15 V - 57 V
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor Yes
Dimensions 444x175x47mm
Operating System RouterOS
Tested ambient temperature -20C .. +60C
License level 6
Current Monitor Yes
CPU TLR4-00980CH-10CE-A3b
Max Power consumption 34W
SFP+ ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Serial port RS232
Storage type NAND
Storage size 128 MB
CPU Threads count 9
