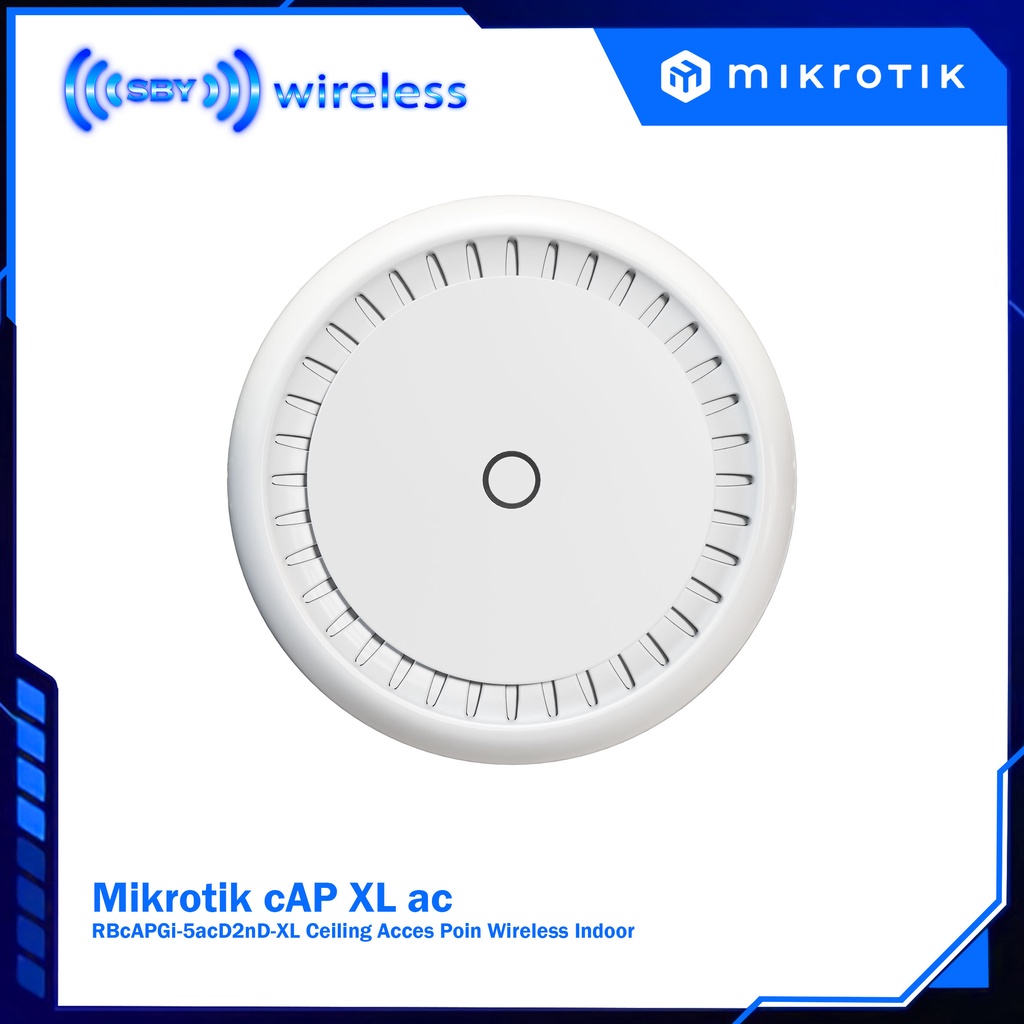

Mikrotik cAP XL ac RBcAPGi-5acD2nD-XL Ceiling Acces Poin Wireless Indoor

Detail Mikrotik cAP XL ac RBcAPGi-5acD2nD-XL Ceiling Acces Poin Wireless Indoor

Mikrotik cAP XL ac RBcAPGi-5acD2nD-XL Ceiling Acces Poin Wireless Indoor

RBcAPGi-5acD2nD-XL adalah type terbaru dari seri cAP dengan antena gain yang lebih besar dibandingkan dengan model cAP series sebelumnya. Memiliki 2 buah port Gigabit Ethernet (PoE Out di Ether 2), access point embedded dengan antena dual band MIMO 2.4 GHz (6 dBi) dan 5 GHz (5,5 dBi). Sudah termasuk power adaptor.

Desain Pemasangan Access Point di langit-langit ( plafon ).

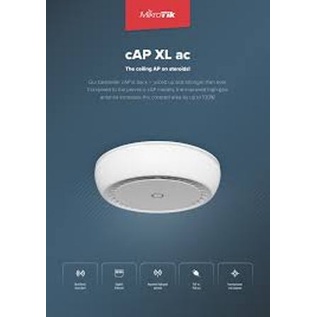

cAP XL ac The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.

Feature :

Ceiling Mount Design
Support PoE in 802.3at/af
PoE Out type-B
High-Gain Ceiling Antenna

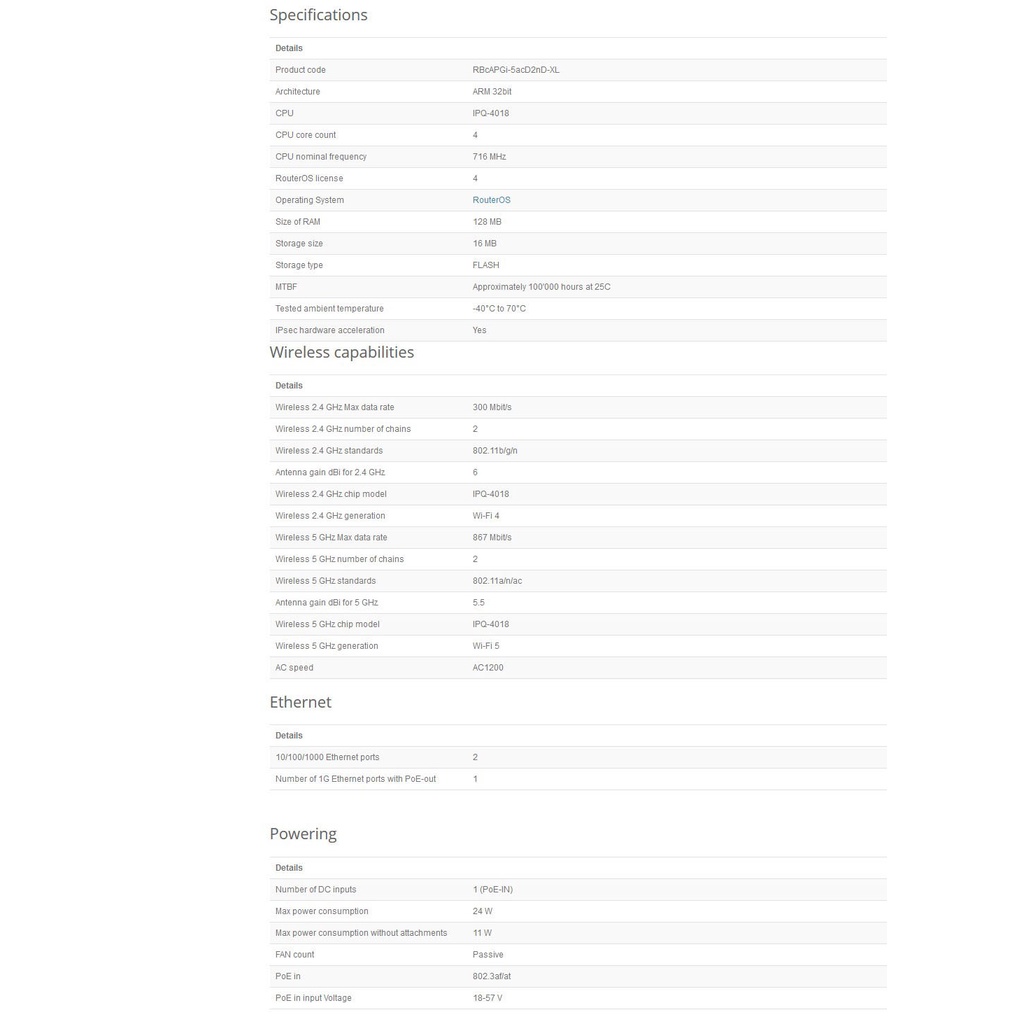

Spesifikasi RBcAPGi-5acD2nD-XL
Product Code RBcAPGi-5acD2nD-XL
Architecture ARM
CPU IPQ-4018 710 MHz Quad core
Current Monitor No
Main Storage/NAND 16MB
RAM 128MB
SFP Ports 0
LAN Ports 2
Gigabit Yes
Switch Chip Yes
MiniPCI 0
Integrated Wireless 1
Wireless Standarts 802.11 a/b/g/n/ac
Wireless Tx Power 26dBm
Integrated Antenna Yes
Antenna Gain 6 dBi / 5,5 dBi
MiniPCIe 0
SIM Card Slots No
USB 0
Power on USB No
Memory Cards No
Power Jack 18-57V
802.3af Support Yes
POE Input Yes
POE Output Yes, Port 2
Serial Port No
Voltage Monitor No
Temperature Sensor No
Dimentions 191x42mm
Operating System RouterOS
Temperature Range -40C to +70C
RouterOS License Level4

#MIKROTIK#CAP

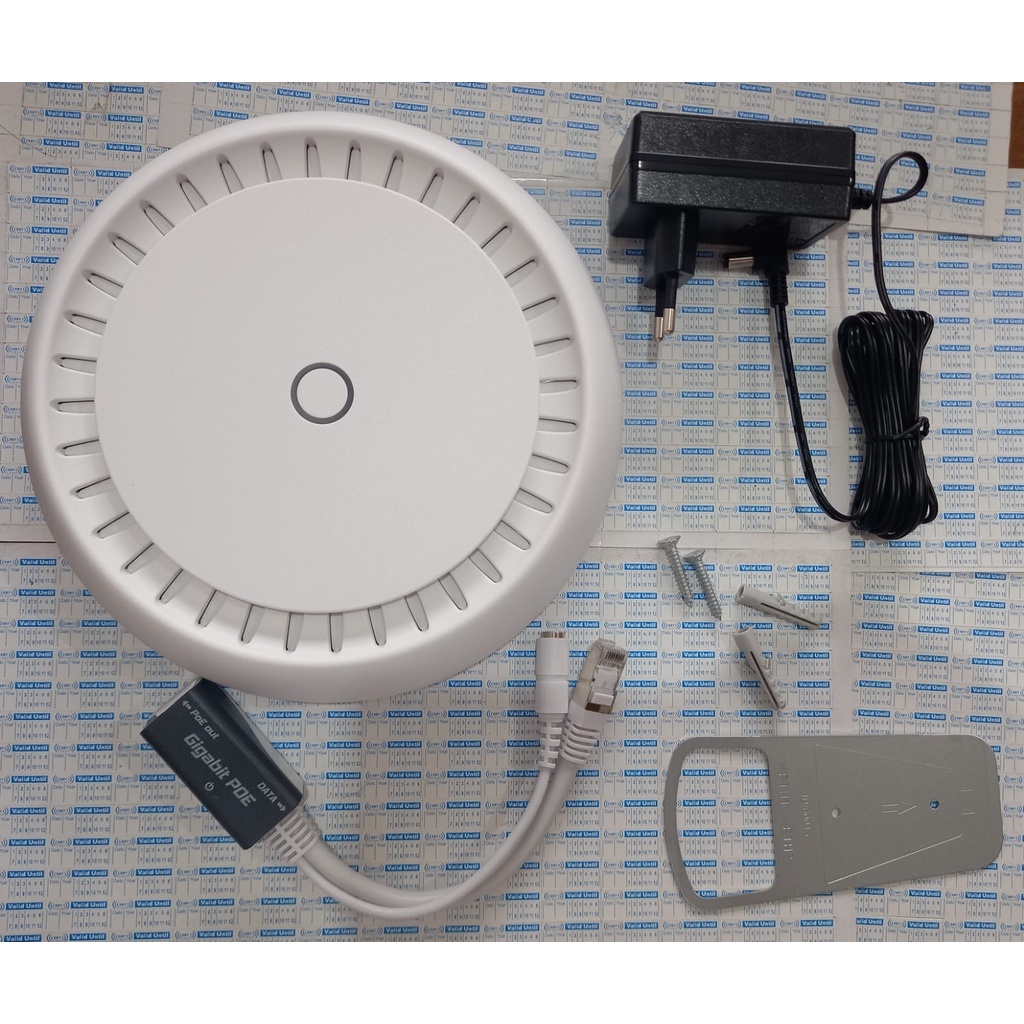

Gambar produk
