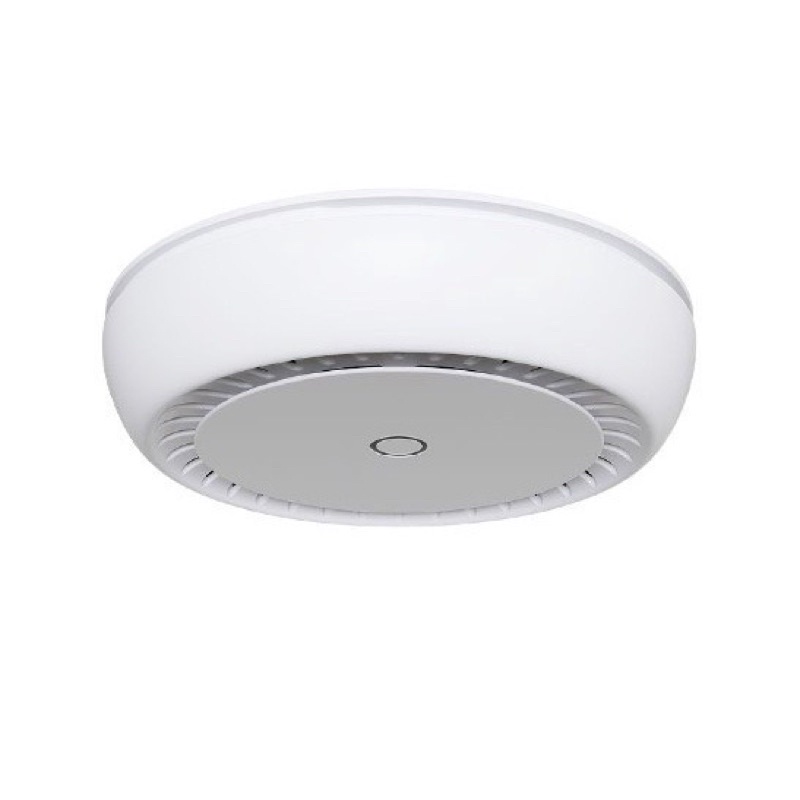

MIKROTIK CAP XL ac RBCAPGi-5acD2nD-XL CAP

Detail MIKROTIK CAP XL ac RBCAPGi-5acD2nD-XL CAP

Specifications
Details
Product code RBcAPGi-5acD2nD-XL
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C



Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200


Ethernet
Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 11 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V


PoE-out
Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 330 mA
Max total out (A) 500 mA


Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS

Gambar produk
