Mikrobits MBETNA-L0 - Mikrobits Server Etna L0

Detail Mikrobits MBETNA-L0 - Mikrobits Server Etna L0

Mikrobits MBETNA-L0 Server Mikrobits Etna L0

MikroBits Etna dirancang untuk memenuhi kebutuhan barebone server yang fleksible dan memadai untuk segala kebutuhan fungsi server. Mikrobits Etna menggunakan processor Intel Quad Xeon D (2.7GHz 4 Core 8 Threads), dilengkapi 4 port ethernet gigabit dan 2 port SFP+ 10G.

* Modul SFP+ transceivers dan 2.5" Hardisk/SSD dijual terpisah.

Spesifikasi Produk:

Form Factor : 1U Rackmount
Processor : Intel Xeon D Processor (2.7 GHz Quad Core)
Chipset : SoC Integrated Intel C220 Series
Memory : 4 x R-DIMM/U-DIMM DDR4-2400 non-buffer non-ECC/ECC up to 128GB
Memory installed : 2 x 8GB DDR4-2400 Industrial Grade ECC RAM
BIOS : AMI (IPMI function)
Storage : 4 x 2.5" SATA HDD/SSD (RAID 0/1/5/10 supported), 1 x mSATA SSD (128GB installed)
Network Interface : 4 x Gigabit Ethernet (Intel i210), 2 x 10Gbe SFP+ (Intel X552)
Lan Bypass : 1 pair (port 3 & port 4)
Lan Module : -
Expansion Slots : 1 x PCIe x8
Serial port : 1 console (RJ45 type)
USB : 2 x USB 3.0
Display : 1 x VGA
LCDs : 1 x back lit 2character x16 character LCD Display
LEDs : Power and HDD LED
Power Supply : 320Watt redundant PSU 80+ Gold (87%~90% efficiency)
Fan : 2x Redundant Chassis Fans,
Dimensions : 44 mm (H) x 430 mm (W) x 391 mm (D)
Weight (net/gross) : 8.5kg (18.74 lb) / 9.8kg (21.61 lb)
Operating Temperature : 0C ~ +40C (32F ~ 104F)
Storage Temperature : -20C ~ +70C (-4F ~ +185F)
Humidity : 10% ~ 90% RH, non-condensing
Operating System : Linux, Windows, Virtualization Host, FreeNas

Kelengkapan :

1 pcs MikroBits Etna
2 pcs Kabel Power
1 set Rackmount Bracket

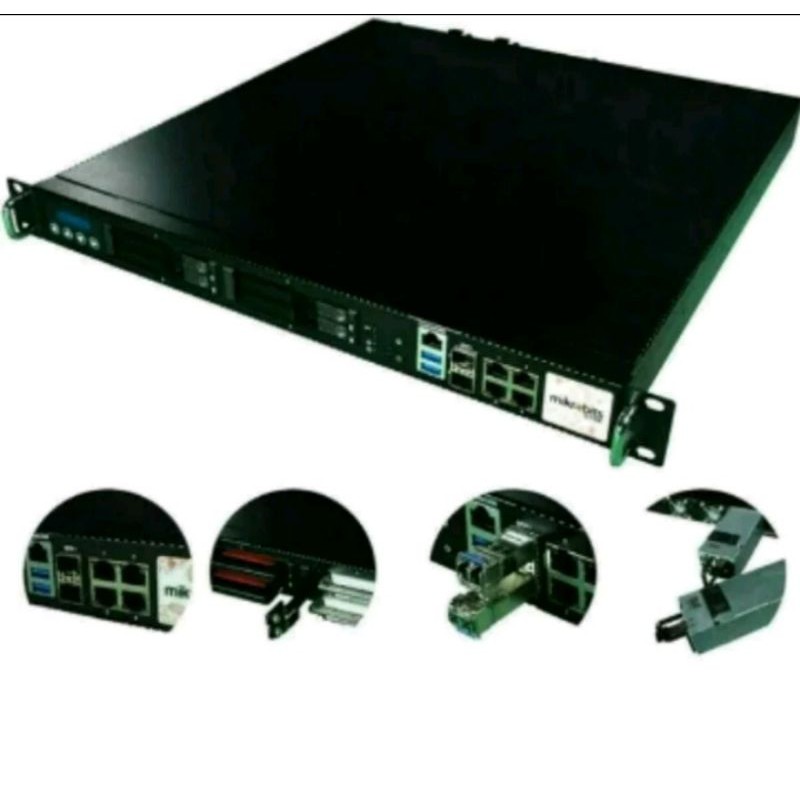

Gambar produk
