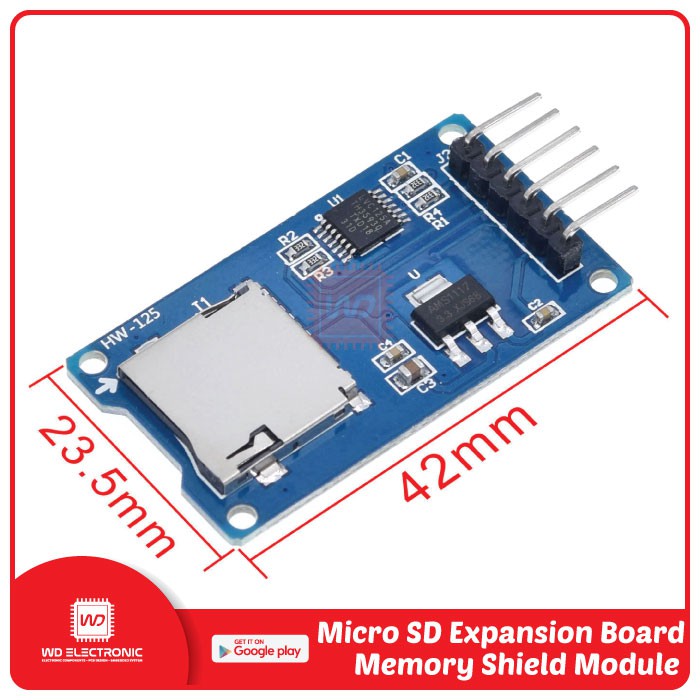

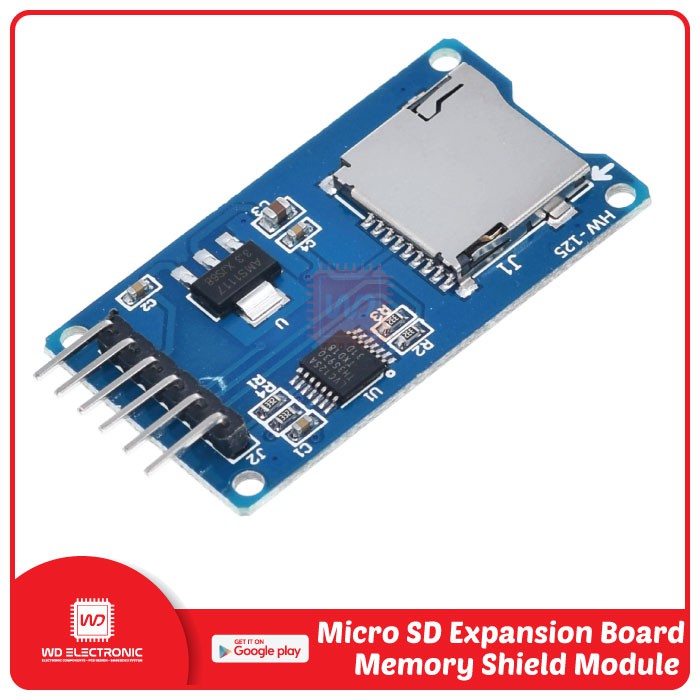

Detail MicroSD Module Micro SD CARD Adapter With Level Shifters

Hi #RekanEasyWare ...
SKU: MOD0111


Spesifications :
* Supports : Micro SD Card, Micro SDHC (high-speed card)
* Interface level : 5V or 3.3V
* Power supply : 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
* Communication interface : Standard SPI

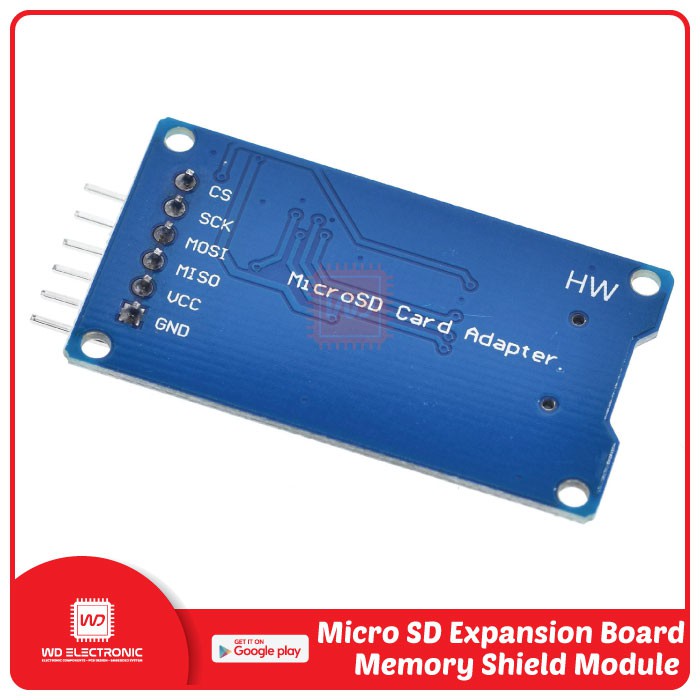

* Control Interface : A total of six pins, GND, VCC, MISO, MOSI, SCK, CS
* 3.3V regulator circuit : LDO regulator output 3.3V
* Level conversion circuit
* Positioning holes : 4 x M2 screw holes for easy positioning. Hole diameter is 2.2mm

Package :
- 1x MicroSD Module
