Microscope Trinokular DW TC-Y Black Edition

Detail Microscope Trinokular DW TC-Y Black Edition

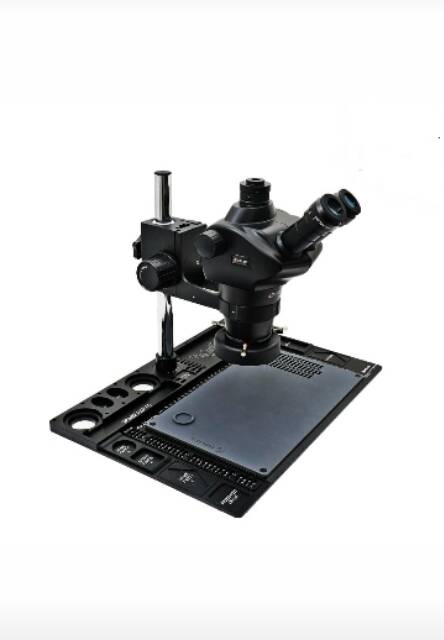

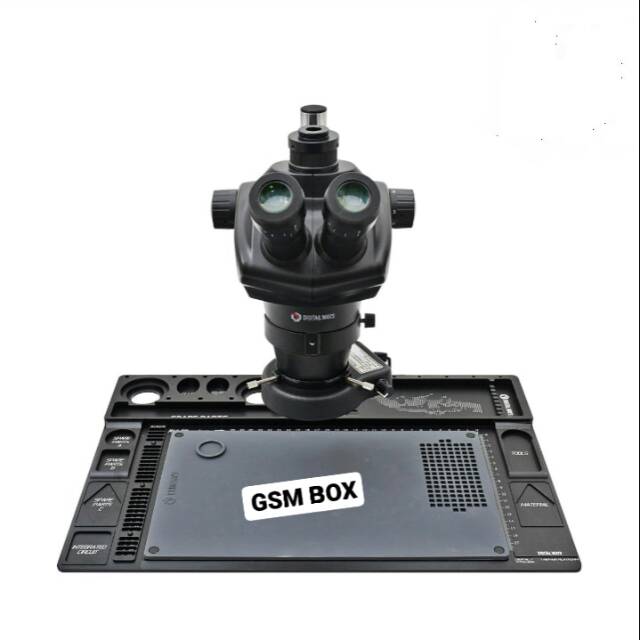

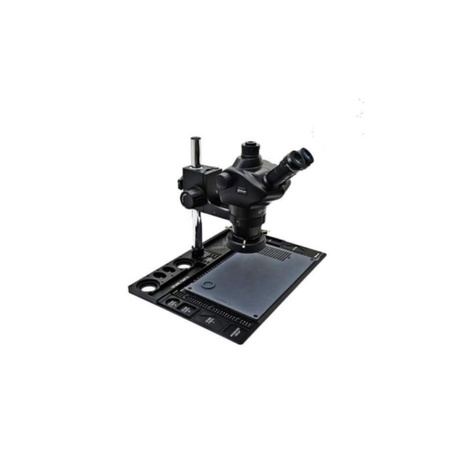

MICROSCOPE TRINOCULER
DIGITAL WAYS DW-TCY BLACK EDITION

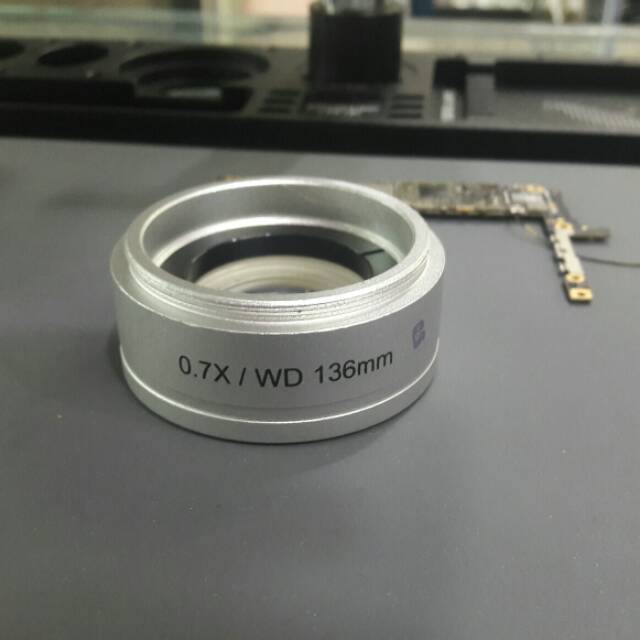

Bonus Lensa 0.7X/WD 136mm

Pembesaran lebih besar (hingga 8X-50X) dan gambar lebih jernih..

Semakin nyaman untuk service karena jarak yang dibutuhkan lebih jauh, jadi tangan akan lebih leluasa bergerak. Fitur lampu yang sudah built-in akan memudahkan pemasangan.

Feature:

Magnification: Standard configuration: 8X-50X, optional eyepiece and auxiliary objective to expand 4X-300X, continuous zoom.

Eyepiece: standard configuration: 10X/22mm, large field of view flat field eyepiece, adjustable reading and reading

Optional eyepiece: 10X/22mm, 15X/16mm, 20X/12mm, 30X/8mm

Observation head: 45° tilt, 360° rotation, the distance adjustment range is 52-75mm, and the bilateral visibility is plus or minus 5. Hinged binocular or trinocular.

Objective lens: 0.8X-5.0X continuous zoom, objective lens zoom ratio 6.3:1 to ensure image surface parfocality

Auxiliary objective: optional 0.5X, 2.0X

Base: 270*360mm

Lighting: reflected light, transmitted light LED

Trinocular interface: with CTV, can be connected to ordinary cameras, digital cameras, industrial cameras, CCD

Gambar produk
